Nu Skin

An overlay to the default PatternSkin (currently just a view template) inspired by the examples and discussion at TWiki:Codev.TWikiForNormalUsers (hence the name) and, with JavaScript enabled on the client, code adapted from the TWiki:Plugins.QuickMenuSkin is used to provide a highly customisable JS menu system. A functional UI for "normal users" persists even when JavaScript is disabled on the client.

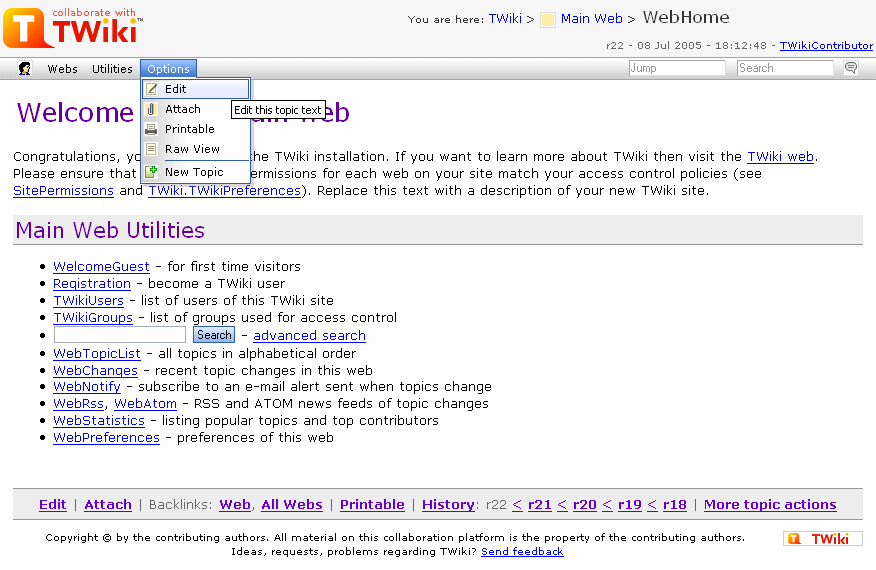

Screen Shot

Click for full screen image Click for full screen image Screenshot

Installation

Note: You do not need to install anything on the browser to use this skin. The following instructions are for the administrator who installs the skin on the server where TWiki is running.

  • Download the ZIP file from the Skin Home page (see below)
  • Unzip NuSkin.zip in your twiki installation directory
  • Test if installed by browsing to this topic on your own installation
  • Activate the skin sitewide by copying the following to your %MAINWEB%.TWikiPreferences topic:
---++!! TWiki.NuSkin settings
   * !Set SKIN = nu, pattern
   * Set LEFTBAR = no
   * Set NULEFTBAR = %TWIKIWEB%.NuLeftBar
   * #Set NUMENUBAR = %TWIKIWEB%.NuMenuBar
   * #Set NUMENUBARCONTENTS = %TWIKIWEB%.NuMenuBarContents
   * #Set NUMENUXTRACONTENTS =
   * #Set NUTOOLBAR = %TWIKIWEB%.OfficeToolBar
   * #Set NUTOOLBAROPTIONS = %TWIKIWEB%.OfficeToolBarOptions
   * #Set NUSUBMENUBAR = %TWIKIWEB%.SubMenuBarExample
   * #Set NUSUBMENUCONTENTS = %TWIKIWEB%.SubMenuContentsExample
The above variables are the NuSkin default settings. For customisation of the default UI for your own TWiki installation you are encouraged to create your own versions of the above topics and reset the above variables accordingly. These settings are further introduced in the next section.

Please note that the skin was originally developed for the TWiki installation on my company's intranet and that things like the green colour scheme and 960px page width are taken from the Community pages that I have tried to fit in with. I have not included our top bar banner in the distribution package as it is unique to us but, as this skin is aimed at the workplace, perhaps you have your own company's banner and colour scheme you can apply. Alternatively, the TWiki:Plugins.QuickMenuSkin has a neutral style that I am sure could be easily adapted to this skin.

Layout and Customising

Starting at the top of the page, in the top bar, each web can have its own descriptive title using the WEBTITLE variable set in the WebPreferences topic. If this is empty or not defined, the web name is used in its place. This can also be (ab)used by a page to put its own title in the top bar, e.g.

   * Set WEBTITLE = Welcome to the TWiki skin for Normal Users
Staying in the top bar, directly below the banner, is the main menubar (as defined by NUMENUBAR with all js menus defined in NUMENUBARCONTENTS). This is the main wiki-navigation-resource on the page:
  • At work I use kinosearch for the search box on the left hand side, but for the distribution I have commented-out this html form and put in a standard TWiki search form.
  • On the right hand side is the "functions" menubar:
    • the "webnav" menu contains the web utilities that are part of the default WebLeftBar but also a Site Map link which uses the TWiki:Plugins.TreePlugin and the TWiki:Plugins.TreeBrowserPlugin to give a hierarchical map of the web's topics (see the Dependencies list in the table at the end for a list of all the additional functionality I am assuming is available);
    • the "users" menu (when logged-in) contains a link to show the latest 50 contributions of the user in the current web, and a listing of all the user's wiki-bookmarks (see below for more on this) - this is basically to replace the personal left bar which has never 'worked' for my users (plenty of lease files to be found for personal left bars that have never been created - they must have clicked on the link, thought "What the..?," and just browsed back);
    • the last two links are for the TWiki web, "TWiki documentation - only interesting if you want to do more than just WYSIWYG editing," and the Main web, "Usersweb and default wiki homepage."
  • In the middle is the "webs" menubar where all the main or gateway webs/links are found. For example, I have a Forum web and a Blog web (courtesy of the respective Add-Ons), a Groups web for access-restricted workspaces (sub-webs) for various groups/projects/sections/divisions at work and two other webs that are major, living projects in themselves.
    • The Forum and the Blog menus list the latest 10 entries in those webs and the Groups menu uses WEBLIST to list all the webs the current user has VIEW access to (the Groups WebHome has a site map of all sub-webs irrespective of VIEW access).

There is no default link to the Sandbox web. For example, I have added a link to the TWiki webhome, "Go to the Sandbox when you want to try out all the cool stuff you are about to learn," but that's it.

The NUSUBMENUBAR and NUSUBMENUCONTENTS variables define a menubar that goes directly beneath the main menubar and is intended for webs that do not have their own entry in the main menubar to which a js menu can be attached through NUMENUXTRACONTENTS. Of course, a page can also define these variables but risks loosing the web defined menubar when doing so. More on this sort of customisation below.

The NuSkin is not intended to have a left bar and, especially with javascript enabled on the client, it really doesn't need it, but a web/page/user can re-enable the left bar by locally setting LEFTBAR to 'yes'. The default NuLeftBar is similar to the WebLeftBar but with the web indicator bit removed and the personal leftbar replaced by a listing of the user's bookmarks. If you have a web which already has a customised WebLeftBar topic just set NULEFTBAR to be blank and WebLeftBar will be used as the default.

I have reverted to using the old 4.1 topicpathinfo because I personally don't like the new 4.2 one.

If you have the TWiki:Plugins.TagMePlugin installed I have included a "tagme" TMPL:DEF in view.nu.tmpl which you can uncomment from the "top" TMPL:DEF (no need to put tagme in the skin path).

The last element to introduce is the NUTOOLBAR. This replaces the toolbar buttons and the topicaction bar. The default toolbar is as defined in the OfficeToolBar topic, so called because I have intended it to look like something the office worker will find familiar (so I hope it does wink ). The NUTOOLBAROPTIONS topic contains some js that adds small menus to some of the entries. From left to right:

  • Edit: default setting is WYSIWYG edit but there is also the option to raw edit
  • Attach
  • Edit page settings: default setting is to edit the page preferences but there is also the option to change the topic parent
  • Edit ACLs: comment this out from the topic if you don't have the TWiki:Plugins.WebPermissionsPlugin installed, if you do, you have to add webpermissions to the SKIN path to look like "nu, webpermissions, pattern"
  • Subscribe to topic update emails courtesy of the TWiki:Plugins.SubscribePlugin (and MailerContrib) - essential for "normal users" - the button, a bell_add icon, is only visible when a user is logged-in
  • Bookmark this page - click on the green add icon and the current topic gets added (using CommentPlugin notation) as a bullet-point to the user's Bookmarks topic and is then available for quick access from the users menu on the topbar - if the current page has already been bookmarked by the logged-in user, the bookmark button is replaced by a green tick icon
  • Print version of the current topic
  • PDF version of the current topic - assuming the TWiki:Plugins.GenPDFAddOn
  • mailto: mail a link to the current topic
  • Raw view of the current topic
  • History: TWiki:Plugins.HistoryPlugin and TWiki:Plugins.CompareRevisionsAddOn really should be installed
  • Rename/move: links checked for in all public webs
  • Delete: links checked for in all public webs
  • Children of the current topic: uses the same SiteMapViewTemplate as for the web sitemap option on the main menubar but with the current topic as the root
  • Create new (child) topic
When looking at previous topic revisions the edit and attach options are replaced by a "Restore to this version" option and a "View latest version" option, and the Rename/move and Delete options are unavailable.

JavaScript is used to detach the toolbar and fix it at the top of the browser window when scrolling down. This is not supported in MSIE5.5/6 because it doesn't recognise the css position:fixed property.

JavaScript is also used to fix the MSIE5.5/6 png problem so some nice looking icons can be used. The used Tango and FamFamFamSilk icons are included in the skin package.

JavaScript caveat: some jQuery functions are used in the NuSkin js so it is required to have the latest version of the TWiki:Plugins.JQueryPlugin installed.

Modifying Menus

Each of the menubars is a single-row html table pre-defined in the above topics to which js menus can be added. Each cell in the table has an anchor with a unique ID and each table has a unique ID and a class which is used to define the menu's look and feel. This way, a usable menubar is always available and, if javascript is disabled on the client, the "users" menu gets a sad-face instead of a smiley-face and a link to the NuSkinNoJS page is added to the menubar.

Following is a simple example of a menubar with two menu-headers,

<table id="webs" cellspacing="0" cellpadding="0" class="qm1">
<tbody>
<tr><td>
<a id="forum" title="Ask your questions, answer those of others" href="%SCRIPTURLPATH{view}%/Forum/%HOMETOPIC%"><span>Forums</span></a>
</td><td>
<a id="blog" title="Tell us about it..." href="%SCRIPTURLPATH{view}%/Blog/%HOMETOPIC%"><span>Blogs</span></a>
</td></tr>
</tbody>
</table>
Note that when the anchors in the table cells contain a text-node only, the text needs to be wrapped in span tags (as in the example above). This is to prevent a bug in a jquery plugin (part of the TWiki JQueryPlugin package) that would cause the menus not to load properly in IE6 and not load at all in IE7.

NuSkin Javascript Reference

Users of the TWiki:Plugins.QuickMenuSkin will recognise the following syntax but there is one important difference due to the fact that the menubar with its link or js action per menu-header (i.e. the Button in the js and the table cell in html) has already been created.
> To initiate a new menu:
   new QuickMenu.Menu("<id of the button>","<id of the table>");
   or with a variable which can be used to add menu items,
   mymenu = new QuickMenu.Menu("<id of the button>","<id of the table>");

> Add items to the menu (the same syntax as for the QuickMenuSkin)
   mymenu.Add("Item Text", "%SCRIPTURLPATH{"view"}%/PageToView", "", "Item Tip");
   mymenu.Add("Text Formatting", "%SCRIPTURLPATH{"view"}%/TextFormattingRules", "%ICONURLPATH{"help"}%", "More formatting help");
   mymenu.Add("Disabled item");

> Add a submenu (the same syntax as for the QuickMenuSkin but with an additional option)
   mymenu.Add("Choose Colour", ":Colour");
   mymenu.Colour.Add(...
   or
   submenu = mymenu.Add("Choose Colour", ":");
   submenu.Add(...
   if you want the header of the submenu to also be a link, use a double colon,
   submenu = mymenu.Add("Choose Colour", "::<url or WikiWordLink>");

> A _cleaner_ interface
   You don't need to store each menu & submenu in variables.
	with (new QuickMenu.Menu(menuBar, "Menu")) {
		Add("Item1", "url");
		Add(); // Separator
		with (Add("SubMenu", ":")) {
			Add("SubItem1", "url");
			Add("SubItem2", "url");
			Add(...
			}
	}

page/web/user customisations

Four variables are provided for this:
  • NUSUBMENUBAR and NUSUBMENUCONTENTS are intended for webs (or even topics) that want their own menubar just below the topbar
  • NUMENUXTRACONTENTS - this is intended for:
    • those webs or gateway topics that are a menu header on the top menubar and want to add extra menu items to their topbar menu when the user is within their domain
    • those webs or topics that want to add additional sub-options to the tool buttons on the toolbar
    • those topics that want to add menu items to the existing menus on the submenubar - any author that is defining this variable in his/her topic should check for an existing variable declaration in the WebPreferences topic and INCLUDE that extra-contents topic at the top of their own
  • NUMENUUSERCONTENTS - this is intended for the power-user who wants to do more than just add links to his/her Bookmarks list, e.g. add a raw=debug sub-option to the "raw view" button on the toolbar

Skin Info

Skin Author: TWiki:Main/DavidPatterson
Copyright: 2008, TWiki:Main.DavidPatterson
License: GPL (GNU General Public License)
Description: An overlay to the default PatternSkin inspired by the examples and discussion at TWiki:Codev.TWikiForNormalUsers
Screenshot: Click for full screen image
Preview: Preview with this topic
Base Name: nuskin
Skin Version: 5 Sep 2008 (v1.01)
Change History:
5 Sep 2008: Documentation and NuMenuBar.txt updated to include a jquery problem workaround; minor correction to view.nu.tmpl
3 Sep 2008: Initial version (v1.00)
Dependencies: TWiki:Plugins.TreePlugin (required)
  TWiki:Plugins.TreeBrowserPlugin (recommended)
  TWiki:Plugins.TagMePlugin (recommended)
  TWiki:Plugins.WebPermissionsPlugin (recommended)
  TWiki:Plugins.SubscribePlugin (essential?) (and MailerContrib)
  TWiki:Plugins.GenPDFAddOn (nice to have)
  TWiki:Plugins.HistoryPlugin and TWiki:Plugins.CompareRevisionsAddOn (essential!)
  TWiki:Plugins.JQueryPlugin (required)
Skin Home: http://TWiki.org/cgi-bin/view/Plugins/NuSkin
Feedback: http://TWiki.org/cgi-bin/view/Plugins/NuSkinDev
Appraisal: http://TWiki.org/cgi-bin/view/Plugins/NuSkinAppraisal

Related topic: TWikiSkins, TWikiSkinBrowser, UserDocumentationCategory, AdminDocumentationCategory
