SID-02457: pattern skin not working in TWiki 6.1 installation

Status:	Answered	TWiki version:	6.1.0	Perl version:	5.12.3
Category:	CategorySkin	Server OS:		Last update:	5 years ago

I have installed Twiki 6.1 version and configured. But pattern skin is working. Like topicaction buttons simply appearing as links and attachment table is not so good looking. I tried changing layout/style.css files still looks same. No idea which template is working and why pattern skin is not working.

Added TWIKILAYOUTURL = /p/pub/TWiki06x01/PatternSkin/layout.css TWIKISTYLEURL = /p/pub/TWiki06x01/PatternSkin/style.css TWIKICOLORSURL = /p/pub/TWiki06x01/PatternSkin/colors.css SKIN = tagme, topmenu, pattern

Note: Manifest files of pattern skin are present in root folder.

-- TWiki Guest - 2020-10-09

Discussion and Answer

Not sure what is going on with your installation. Let's test here:

• Set SKIN = pattern

-- Peter Thoeny - 2020-10-09

I also added an attachment to test the attachment table. As you can see all looks Ok here.

Could this be a some mix-up with old and new installation? If you installed a new TWiki over an old you could get into this issue.

-- Peter Thoeny - 2020-10-09

What do you miss from the TopMenuSkin? If it is the sidebar it can be added, see TopMenuSkin

-- Peter Thoeny - 2020-10-09

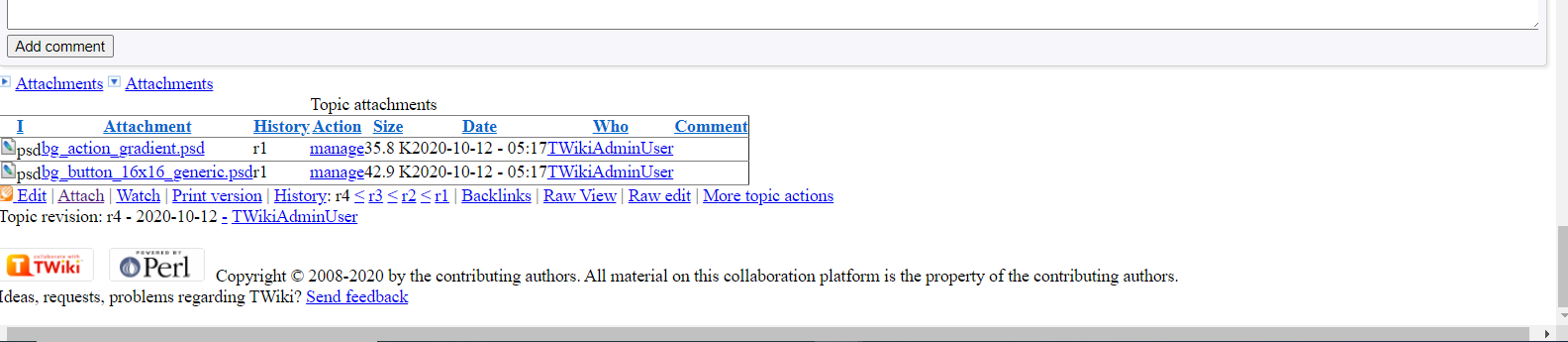

have attached screenshot of my page capture.png . pls have a look. This is my first time installation and did 6.1 version directly. No older version. Yea, no side bar there. Attachment is working, but still layout is very bad. doesn't look as in current page you attached. I have set skin to /data/Main/TWikiPreferences.txt folder. Is that right? Also, twistyplugin is not working at edit help link and attachment link. Guidance from your side would be helpful. Is there any other step to enable pattern skin that I missed out.

-- TWiki Guest - 2020-10-12

in lib/LocalSite.cfg

$TWiki::cfg{TemplatePath} = '.../twiki/templates/$web/$name.$skin.tmpl, .../templates/$name.$skin.tmpl, .../templates/$web/$name.tmpl, .../twiki/templates/$name.tmpl, $web.$skinSkin$nameTemplate, TWiki.$skinSkin$nameTemplate, $web.$nameTemplate, TWiki.$nameTemplate';

-- TWiki Guest - 2020-10-12

do twiki preference to be set in /data/Main/TWikiPreferences.txt correct? or into pub directory. bcoz no twiki preference folder in pub dir.

Am new to twiki, suggestions would be helpful!!

thanks

-- TWiki Guest - 2020-10-13

do twiki preference to be set in /data/Main/TWikiPreferences.txt correct? or into pub directory. bcoz no twiki preference folder in pub dir.

Am new to twiki, suggestions would be helpful!!

thanks

-- TWiki Guest - 2020-10-13

do twiki preference to be set in /data/Main/TWikiPreferences.txt correct? or into pub directory. bcoz no twiki preference folder in pub dir.

Am new to twiki, suggestions would be helpful!!

thanks

-- TWiki Guest - 2020-10-13

I had a similiar problem, turned out that what was needed was In the General Path Settings to change the {PubUrlPath}δ setting to be /pub

-- TWiki Guest - 2020-10-16

Using the browser, go to your Main.TWikiPreferences, and add a bullet as follows:

• Set SKIN = pattern

-- Peter Thoeny - 2020-10-17

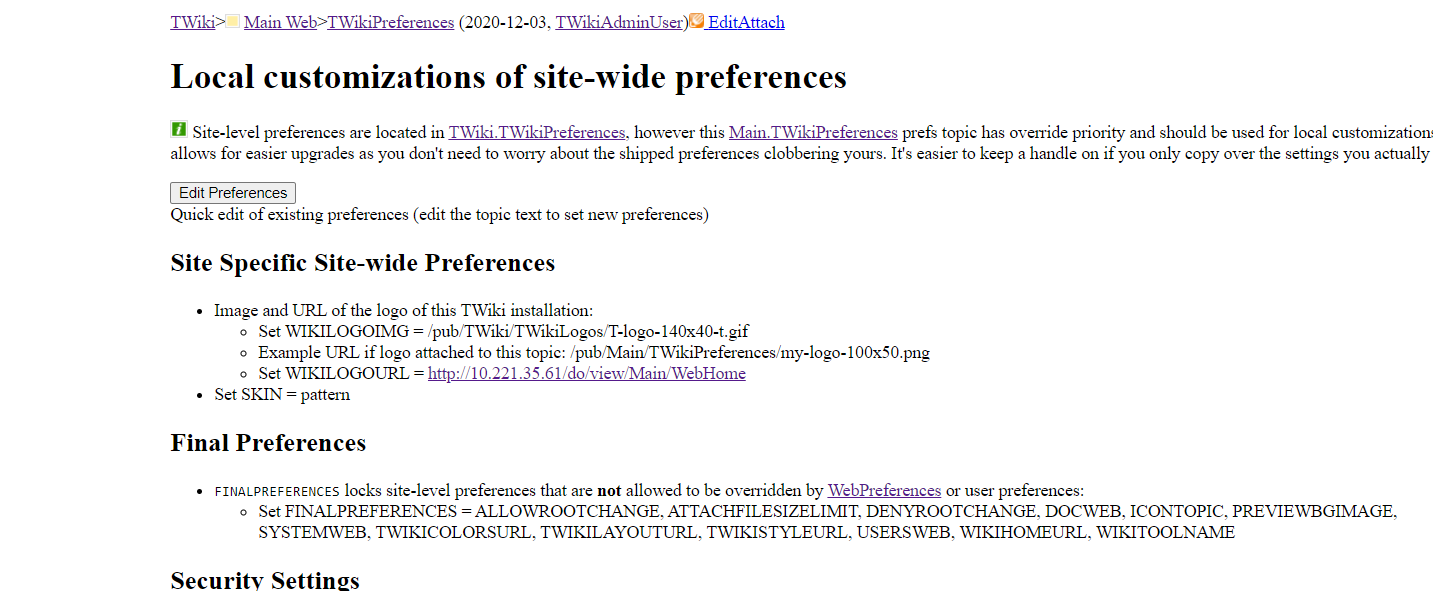

Please find attached captureskin image after adding set skin = pattern preference in TWikiPreferences My general path setting is /pub for {PubUrlPath} variable from first. Still facing issue.

-- TWiki Guest - 2020-12-03

Are you referring to CaptureSKIN.PNG? It looks like your {PubUrlPath} configure setting and/or the corresponding Apache setting is not set properly. Best to use the ApacheConfigGenerator to get the proper settings.

-- Peter Thoeny - 2020-12-04
