Natural Edit Contrib

Powered by
WikiRing Consultants

Description

The NatEdit is an wiki editor that helps in learning the TWikiMarkup Language by providing a GUI. By design, this is not a wysiwyg editor that tries to generate the correct TML in the background. Instead, the user is still in charge of writing correct wiki markup but with a bit more of assistance as a plain browser textarea. Therefor this editor helps to lower the learning curve but will not get in your way once you are aware of wiki markup.

NatEdit is implemented as a jquery plugin, called jquery.natedit, and thus heavily depends on javascript. Hence browsers without javascript are not supported. You will need to install the TWiki:Plugins/JQueryPlugin to use NatEdit.

Caution: Unlikely previous versions (pre 2.0), theming has been disabled in the current version. So you are "stuck" with one and the same button layout for now.

Documentation

jquery.natedit docu

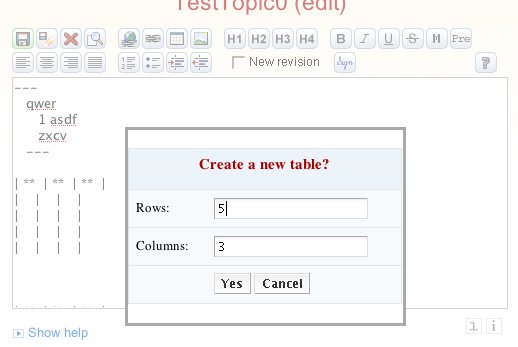

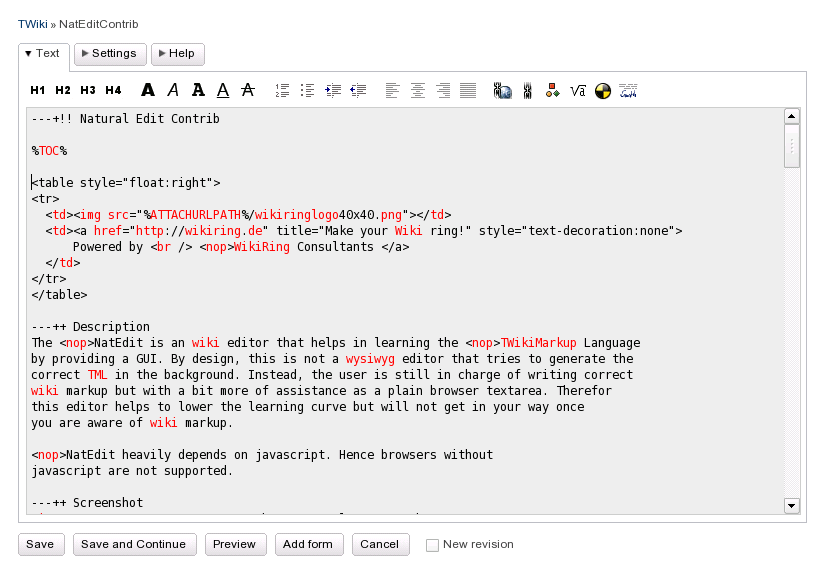

Screenshot


Configuration

PatternSkin:
To enable the NatEditContrib add the identifier natedit to the SKIN variable in TWikiPreferences or WebPreferences, e.g.
   * Set SKIN = natedit,pattern

NatSkin:
No extra configuration steps are needed in case you are using TWiki:Plugins/NatSkin. NatEditContrib is the default editor for NatSkin, that is the normal

   * Set SKIN = nat
is sufficient.

JSUnitContrib based Unit tests

There is a small set of browser based unit tests defined in NatEditContribJSUnitTests that can be run as a problem diagnosing tool. These require the installation of TWiki:Plugins.JSUnitContrib, and then can be run from Run all tests

Testing has been carried out using Safari, Firefox, Opera and Internet Explorer.

Contrib Info

Sponsored by Trivadis AG & TWIKI.NET

Author: TWiki:Main/MichaelDaum
Copyright ©: 2007-2008 Michael Daum http://michaeldaumconsulting.com
License: GPL (GNU General Public License)
Version: v2.12
Change History:
16 Jul 2008 fixed calculation of tab height; removed topicinfo makro as it is in conflict with PatternSkin
03 Jul 2008 improved skin to ease integration into TWikiApplication
29 Apr 2008 added workaround for regression error in IE6+7's textarea; be backwards compatible to legacy pattern skins
17 Jan 2008 reimplemented as jquery.natedit plugin; using a tabbed interface now; new default button design
03 Jan 2008 added beforeSubmitHandler to give TWiki:Plugins/EditChapterPlugin a chance to hook in
13 Nov 2007 fixed calculation of textarea offset while autoresizing it to window height, fixed initialization not to use Behaviour anymore, fixed autohide/showing of word toolbar together with tinymce
08 Oct 2007 fixed word toolbar together with TinyMCEPlugin; fixed launching a popup by not relying on twiki's javascript; using css sprites instead of individual buttons
02 Oct 2007 be compatible with TinyMCEPlugin
23 Aug 2007 bug fixes for IE6&7 - Item4430
04 Aug 2007 added Word theme added bullet and numbered lists buttons & Javascript added create Table button and Javascript work done by TWiki:Main.SvenDowideit DistributedINFORMATION for TWIKI.NET
21 May 2007 fixed display of toolbar buttons
01 May 2007 made natedit themable
27 Apr 2007 made all button output configurable; standardized their defaults; fixed javascript in preview mode; added support for TWiki:Plugins/RevCommentPlugin; added monospace button; reworked some of the icons
23 Apr 2007 fixed IE freezing on resizing the edit window
05 Apr 2007 added support for EditContrib and editform
04 Apr 2007 added css file; added monospace <-> propotional font toggles; made signature text customizable; minor refactoring of the javascript; removed non-standard tags FORMATLIST and IFDEFINED
03 Apr 2007 added NATEDIT_HELPTEXT variable; be backwards compatible to PatternSkin (TWiki-4.1.2)
31 Mar 2007 Initial version
Dependencies:
NameVersionDescription
TWiki::Plugins::JQueryPlugin>=0.50Required. Download from the TWiki:Plugins/JQueryPlugin add-on.
Perl Version: -
Plugin Home: TWiki:Plugins/NatEditContrib
Feedback: TWiki:Plugins/NatEditContribDev
Appraisal: TWiki:Plugins/NatEditContribAppraisal

-- TWiki:Main.MichaelDaum - 16 Jul 2008

Topic attachments
I Attachment History Action Size Date Who Comment
Unknown file formatmd5 NatEditContrib.md5 r25 r24 r23 r22 r21 manage 0.2 K 2008-07-16 - 16:04 UnknownUser
Compressed Zip archivetgz NatEditContrib.tgz r26 r25 r24 r23 r22 manage 101.1 K 2008-07-16 - 16:03 UnknownUser
Compressed Zip archivezip NatEditContrib.zip r26 r25 r24 r23 r22 manage 111.8 K 2008-07-16 - 16:03 UnknownUser
Unknown file formatEXT NatEditContrib_installer r14 r13 r12 r11 r10 manage 4.8 K 2008-07-16 - 16:04 UnknownUser
PNGpng button_signature.png r1 manage 0.9 K 2007-04-04 - 12:35 UnknownUser
PNGpng screenshot1.png r2 r1 manage 50.9 K 2008-07-16 - 16:03 UnknownUser
