This is the skin used at my company, Fotón (an small IT Spanish company). We've focused in ease of use (for technical people) and what we think is DWIM (DoWhatIMean).

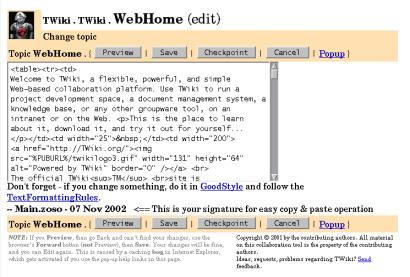

Edit mode (note that the buttons are also at top)

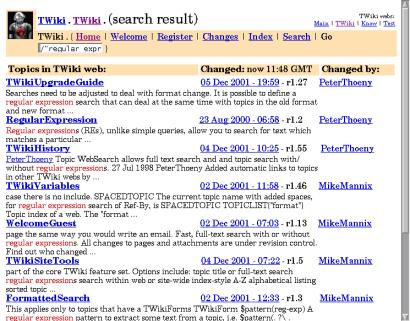

Search keywords color highlight


The PhotonSkin features:

  • A powerful yet easy to use new search, the PhotonSearch.
  • Search options and some actions integrated in the Go box.
  • Color highlighting for search results.
  • Checkpoint save and direct save from the KoalaSkin.
  • Buttons and top and bottom of the page for quicker access.
  • Special syntax to add a quick changes notification.

There are also some mods (the PhotonTWikiMods) to enable a Google cache-like color highlighting to search results, also available as an action for the current topic (See the PhotonSearch documentation).


To install PhotonSkin, you need the following Perl modules:

  • Text::Soundex
  • URI::Escape

You can get them at CPAN (http://search.cpan.org).

Once you have all that installed, unpack the skin:

(Go to the appropriate directory, which should be something like /var/www/twiki or /home/httpd/twiki; in Debian, it's probably /var/lib/twiki)

# unzip /home/zoso/tmp/photonskin/twiki/photonskin.zip

You'll have to patch your TWiki::Prefs module with the patch provided (twiki-prefs-pm.patch). Don't worry, the patch will only add one function. The patching should be as simple as:

cd $TWIKIDIR/lib/TWiki
patch <$PATCHDIR/twiki-prefs-pm.patch
Set the SKIN to "photon" (in TWikiPreferences, *.WebPreferences o in your own user topic). Be sure you have email addresses in all your user topics, for the notifications to work right, and that you have WIKIWEBMASTER and SMTPSENDERHOST set correctly, just in case. Optionally, you can also set variables ALIAS and VALID_DOMAIN_ACCOUNTS (see notifications, below).

Customize the file lib/TWiki/Notifications.pm with your message template in line 35, if you want to use notifications (see the notification syntax in the next section).


The save CGI recognizes a syntax for notifications. The idea is being able to notify someone about a change, remarking some text. That is, you mark some text and specify a list of recipients to send a notification to. The syntax is:

##My important text. Will be saved with the node##(recip1, recip2)

The notifications will be sent by e-mail to the specified users. You can use as recipients for the "regular" notifications the login names in the .htpasswd file. The address used is the one in their user topic (Email "property"). As a convenience, you can:

  • Define aliases in an ALIAS variable (in TWikiPreferences, for example), so the alias is converted to a username.
  • Use email addresses directly if you want to send the notification to someone not in your email domain.
  • Use an account listed in the VALID_DOMAIN_ACCOUNTS special variable. When one of these is used, the complete email address will be the parameter plus an at sign and the domain specified in SMTPSENDERHOST (defaulting to localhost.localdomain if none is specified).

Specific tags (see "Plugins", below) are supported with this syntax:

##My important text. Will be saved but possibly modified##(tag: param1, param2; othertag: param1, param2)

Of course you can mix both styles, but the default (empty) tag must be the first one:

##My important text. Will be saved but possibly modified##(recip1, recip2; othertag: param1, param2)

When tags are used, a plugin is called and the meaning of the parameters vary from plugin to plugin.


Since the June 2003 version, you can write plugins for the notifications. You just have to write a Perl module with the same name as the tag you want to implement, and put it under lib/TWiki/Notifications/. The module will have the first letter uppercase and the rest, downcase. The tag, in the notification, is converted accordingly, so it's case-insensitive.

The interface you have to provide is simply a function called notify. The parameters are $theNotificationParams, an array ref with the parameters; $theText, the notification text; $theWeb; $theTopic; and the $theUser, the notificating user's login name. THE VALUE RETURNED IS THE TEXT THAT WILL BE SUBSTITUTED BY THE ORIGINAL TEXT. That is, if you return 1, the notification text will be changed by the string 1.

In the distribution, a plugin called Test is provided for demonstration purposes.


PhotonSearch is the Google-like search for PhotonSkin. It's used directly through the "Go" box in every page, and follows these rules:

  • If the contents of the box begin with an uppercase, its behaviour is the same as the standard Go box (you can also use the Web.TopicName notation).
  • If the contents of the box begin with /, it performs a full text search, using the DirectSearch method.
    • If the contents of the box begin with /, and there is another / in the box, make a text contents search only in the nodes whose names have the final words in theirs, e.g.: /curses/perl searches for the text "curses" in the pages with "perl" in their names, for example, PerlTutorial, PerlTools, PHPVsPerl, etc.
  • Else, it performs a search in the node names. Basically, it searches the words typed in the node names (AND operation).

If there is only one result in the search, it redirects to the topic itself. If there are no results in a topic name search, it tries a full text search.

The search results feature a Google-like search keyword highlight in the topic summary.

Advanced usage

PhotonSearch understands some options. They go before the search expression, separated by a colon (:). By now, the list of possible options is:

  • l to search locally (only current web). By default, PhotonSearch does a global search, although that behaviour can be changed passing local as the CGI parameter scope.
  • a to search globally (all webs except Trash). This is the default unless you pass the value local in the parameter scope.
  • u to respect case. By default, searches ignore case.
  • n to open a new window. This is a Javascript feature in the template rather than a PhotonSearch one.
  • e to open the edit window instead of the view one. Note that this only happens if there is only one result.
  • c colorizes the current node with the given words. For example, you type c:one two three and the topic is reloaded, highlighting the words one, two and three. The words can in fact be regular expressions. For this to work, you need to install view CGI from PhotonTWikiMods.
  • v switches to BookView in the results, that is, shows the complete topic text for each result.

That is, one could write

    ne:per bookm

to edit directly his personal bookmarks (for example) without losing the current window, supposing only that topic had «per» and «bookm» in its name.

Special search modes

The sidebar and popup modes are achieved by simply adding the appropriate value to the type parameter in the PhotonSearch CGI call. The type can be search for regular search, popup for the popup mode, and sidebar for the sidebar mode. The special modes use Javascript, but should work in IE, Mozilla and Opera. If you use other browsers and have problems, please report them.

To install them, simply copy searchpopup.tmpl and searchsidebar.tmpl to your templates directory.


To add the sidebar to Mozilla, copy and paste this text into your address bar and press enter. You'll have to change yourtwikiURL with the URL of the (PhotonSearch-powered) TWiki you want to search on.

javascript:window.sidebar.addPanel ('PhotonSearch','http://yourtwikiURL/bin/photonsearch?type=sidebar', '');

To add it to Opera, add a new panel and put http://yourtwikiURL/bin/photonsearch?type=sidebar in its URL.

Popup mode

You can add a link like the following in your view template to access the Popup mode:

<a onClick="javascript:w = window.open('/twiki/bin/photonsearch?type=popup', \
'photonsearch', 'location=no,menubar=no,width=300,height=400,scrollbars=yes'); \
w.focus(); return false" href="#">Popup</a>

-- EstebanManchado - 06 Nov 2002


  • 13 Jun 2003 (version-1_0): Added v: option to PhotonSearch, added TWiki::Prefs patch, updated documentation, added "lurker" script.
  • 11 Jun 2003: Added missing file Colorize.pm (thanks, Lynnwood)
  • 4 Jun 2003: Some bugfixes, added security and new syntax for PhotonSearch, generalized notifications syntax.
  • 27 Feb 2003: Added templates/ directory (doh!)
  • 20 Nov: Updated notifications module (clean-ups) and dropped Mail::Send dependency.
  • 7 Nov: Corrected some undocumented Perl dependencies
  • 6 Nov: First upload


Discussion moved to PhotonSkinDev.

-- EstebanManchado - 20 Nov 2002

Topic attachments
I Attachment History Action Size Date Who Comment

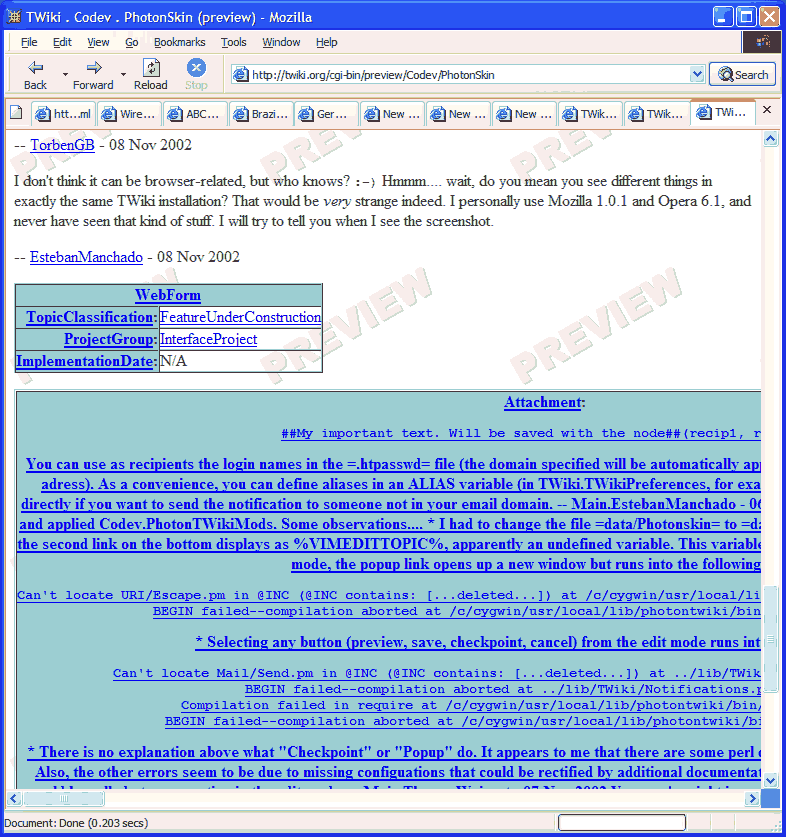

GIFgif browser_junk.gif r1 manage 48.3 K 2002-11-08 - 12:02 TorbenGB Previewing with Mozilla1.1/WinXP shows junk.
HTMLhtm browser_junk.htm r1 manage 56.2 K 2002-11-08 - 15:27 TorbenGB HTML listing of junk in Mozilla1.1/WinXP.
JPEGjpg photonskin-1.jpg r1 manage 27.9 K 2002-11-07 - 12:22 EstebanManchado Edit mode (note that the buttons are also at top)
JPEGjpg photonskin-2.jpg r1 manage 41.0 K 2002-11-07 - 12:31 EstebanManchado Search keywords color highlight
Compressed Zip archivezip photonskin.zip r7 r6 r5 r4 r3 manage 31.4 K 2003-06-13 - 15:25 EstebanManchado The skin
