TWikiDrawPlugin

Vector drawing editor and clickable maps for diagrams and workflows

Overview

This plugin encapsulates the TWikiDraw Java Applet first developed by TWiki:Main.PeterThoeny from the original JHotDraw.

JHotDraw is a simple drawing editor that supports drawing in a style similar to that found in MS Powerpoint and MS Word. Various shaped figures can be placed in the drawing and text annotations joined to them.

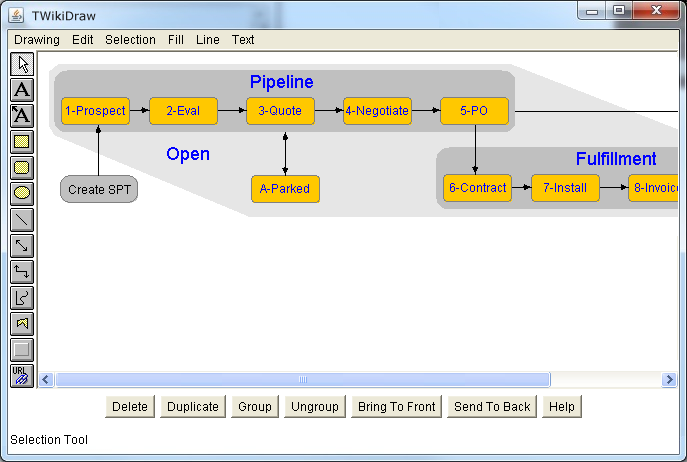

TWikiDraw screenshot

Unique to TWikiDrawPlugin, a drawing can also have a "map" which makes figures in the drawing sensitive to the mouse cursor. A map is automatically added to an image when a URL is attached to any of the figures.

How you edit a drawing depends on whether the drawing has a map and the setting of the "EDIT_BUTTON" option. A drawing with no map can be edited simply by clicking on the drawing. A drawing with a map can be edited by clicking the edit button or, failing that, on the boundary of the image.

Browser support for Java 1.1 or later required.

Syntax Rules

Write the command %DRAWING{name}% anywhere in a TWiki topic. You can name the drawing anything you like, allowed characters are A-Z, a-z, 0-9, ., _, -. If you have only one drawing in the topic you can simply write %DRAWING% .

Example: %DRAWING{workflow}%

Tools

The tools on the left create or manipulate figures.

Selection selects, moves or resizes a figure; the shift-key toggles the selection. Dragging the selection tool in the background selects the figures within the dragged rectangle.
Text creates a new or edits an existing text figure
Connected Text creates a new text figure and attaches it to the clicked figure. Once a text figure is attached it remains connected to the figure.
Rectangle creates a rectangle figure
Round Rectangle creates a round rectangle figure
Ellipse creates an ellipse figure
Line creates a line figure
Connection Line creates or adjusts connections between figures. A connection is split into segments by dragging a point on the connection. To join two segments click the end point of a segment
Elbow Connection Line creates an elbow connection and offers the same features as the ordinary connection tool
Scribble creates a scribble figure; dragging the mouse creates a smooth line while successive clicks yields a polyline figure. A two-button click terminates the figure.
Polygon creates a polygon figure; dragging the mouse creates a smooth border while successive clicks yields a polyline border. A two-button click or the ESCAPE key terminates the figure.
Border decorates the clicked figure with a border
URL adds a sensitive area to the figure that will redirect to a URL. If an image contains any sensitive areas it can only be selected for edit by clicking on the boundary or (if enabled) the attached Edit button. You can use wikiwords and web.topic wiki link expressions as well as full URLs.

Handles

When selected, figures provide different handles to manipulate them.

  • the white squares let you to manipulate the shape of a figure
  • the green squares on connections let you to reconnect them with another figure.
  • the yellow circles on polygon figures let you change the size and rotation of the figure
  • yellow circles on rounded rectangles let you change the radius of the corners
  • the yellow circles on connections let you manipulate the position of connection segments.

Commands

Commands are invoked from the button bar at the bottom or from the menu bar at the top.

The standard commands that are provided include cut, copy, paste, duplicate, delete, group, ungroup, bring to front, and send to back.

Attributes

Attributes, such as fill color, text color or arrow tip, can be changed through the attributes menus.

Plugin Settings

NOTE: Do not change the settings here, overload them in the Main.TWikiPreferences. Prefix a setting with TWIKIDRAWPLUGIN_, e.g. to overload EXTRA_COLORS define a TWIKIDRAWPLUGIN_EXTRA_COLORS setting in the Main.TWikiPreferences.

  • One line description, is shown in the TextFormattingRules
    • Set SHORTDESCRIPTION = Vector drawing editor and clickable maps for diagrams and workflows

  • Extra colors to be added to the menu of colors in the applet, as a comma-separated list with colors in HTML format (see StandardColors)
    • Set EXTRA_COLORS = Aquamarine=#70DB93,New Tan=#EBC79E,Sea Green=#238E68,Motorola Blue=#3ff

  • Set to 1 if an "Edit" button is to be generated attached to the image. You will still be able to edit it by clicking on the boundary of the image.
    • Set EDIT_BUTTON = 1

  • Edit text defined here so you can change it for local languages. Text is shown when you hover over the image, and for the edit button. %F% will be replaced by the drawing name.
    • Set EDIT_TEXT = Edit drawing '%F%' (requires a Java 1.1 enabled browser)

Example Drawing

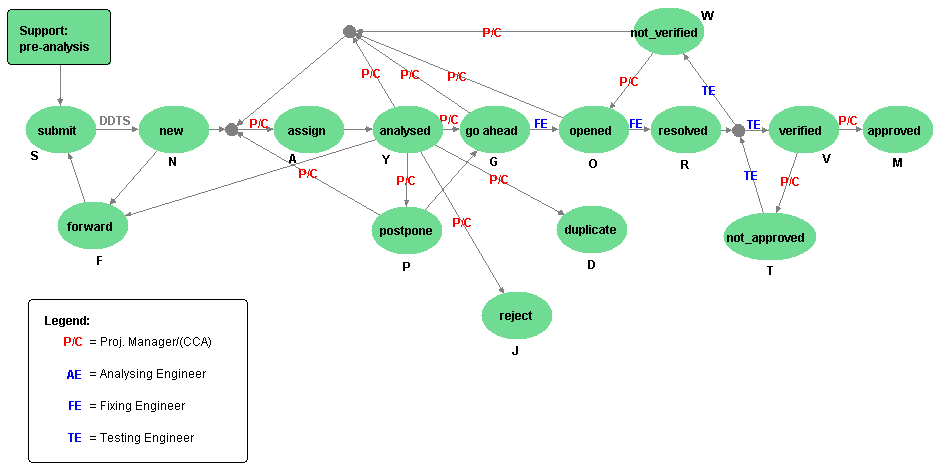

Here's an example using an image map. Move the mouse over the image and watch the status bar.


Edit
DefectTrackingSystemReOpenDifferentProjectReCycleSomeDayOhNoNotAgainAnotherDayDifferentProjectReAssignReAssignReAssignReCycleSackTheFixerItsRealWasteOfTimeReAssignUnVerifItsOkVeriFriedUnApproReSolvedOpeNedDooPlicateReJectPostPoneGoAheadAnalYsedAsSignNewBugForWardSubMitPreAnalysisGetHelpEdit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)

Plugin Installation

Note: You do not need to install anything on the browser to use this plugin. The following instructions are for the administrator who installs the plugin on the TWiki server.

  • For an automated installation, run the configure script and follow "Find More Extensions" in the in the Extensions section.

  • Or, follow these manual installation steps:
    • Download the ZIP file from the Plugins home (see below).
    • Unzip TWikiDrawPlugin.zip in your twiki installation directory. Content:
      File: Description:
      data/TWiki/TWikiDrawPlugin.txt Plugin topic
      data/TWiki/VarDRAWING.txt DRAWING variable documentation topic
      lib/TWiki/Plugins/TWikiDrawPlugin.pm Plugin Perl module
      lib/TWiki/Plugins/TWikiDrawPlugin/source.zip Zip with Java sources
      pub/TWiki/TWikiDrawPlugin/*.gif Button images
      pub/TWiki/TWikiDrawPlugin/example.draw Example drawing
      pub/TWiki/TWikiDrawPlugin/example.gif Example drawing, generated image file
      pub/TWiki/TWikiDrawPlugin/example.map Example drawing, generated map file
      pub/TWiki/TWikiDrawPlugin/newdrawing.gif New drawing image
      pub/TWiki/TWikiDrawPlugin/screenshot.png Screenshot
      pub/TWiki/TWikiDrawPlugin/twikidraw.gif TWikiDraw icon image
      pub/TWiki/TWikiDrawPlugin/twikidraw.jar Java applet
      templates/twikidraw.tmpl Template for drawing editor
      templates/twikidraw.pattern.tmpl Template for drawing editor, pattern skin
    • Set the ownership of the extracted directories and files to the webserver user.

  • Plugin configuration and testing:
    • Run the configure script and enable the plugin in the Plugins section.
    • Test if the installation was successful: You should see a "Create New Drawing" box below. Click on it.
      Edit drawing `empty` (requires a Java 1.1 enabled browser)

Plugin Info

Plugin Author: TWiki:Main.PeterThoeny, TWiki:Main.CrawfordCurrie http://www.c-dot.co.uk, TWiki:Main.SopanShewale
Copyright: © 2000-2012 Peter Thoeny TWiki.org;
© 2008-2012 TWiki:TWiki.TWikiContributor;
see additional copyrights below
License: GPL (GNU General Public License)
Plugin Version: 2013-05-17
Change History:
2013-05-17: TWikibug:Item7255: Enable TextFigure to have URL attribute; Erase URL text correctly when a drawing is moved while the URL is overflown -- TWiki:Main.MahiroAndo
2013-05-13: TWikibug:Item7255: Suppress "edit" link when not editable; Add title="..." to tags to show tooltips for URLs; Prevent browser/proxy caches as much as possible; Always put an empty .map file so it works even after adding and removing URLs -- TWiki:Main.MahiroAndo
2012-12-10: TWikibug:Item7073: TWikiDrawPlugin doesn't support multiple disks.
2012-11-25: TWikibug:Item7020: Adding and categorizing TWiki variable doc topic VarDRAWING
2012-11-25: TWikibug:Item7056: Show default image for new drawing (if image is missing); doc improvements; change TWIKIWEB to SYSTEMWEB; replace confusing static drawing image with TWikiDraw logo image, and add clarifying note that popup will open with Java based drawing editor -- TWiki:Main.PeterThoeny
2011-04-05: TWikibug:Item6638: Doc improvements; fixing broken button images -- TWiki:Main.PeterThoeny
2009-10-29: TWikibug:Item6333: TWikiDrawPlugin does not work in TWiki-4.3.2 if {CryptToken}{Enable} is set -- Sopan Shewale
8570 TWikibug:Item1528: Minor pattern skin template update for TWikiDrawPlugin
8569 TWikibug:Item1528: Adding pattern skin template to TWikiDrawPlugin
7926 TWikibug:Item1206: minor formatting fix
7907 TWikibug:Item1206: merged minor documentation fixes that were causing confusion about latest version of the plugin.
7761 TWikibug:Item1124: Checked in jar file, even though it is built, because most people don't have ANT and it's a source of error for people using SVN checkouts.
6340 TWikibug:Item196: Added screenshot to TWikiDrawPlugin
5245 Added anchor support to wikilinks
5243 Added support for web.topic wiki links, and remove url encoding, which was breaking
5223 Documentation fixes, adding gifs.
5057 Minor changes for prettification, and added ,v files
5053 Validated XHTML
5051 Updated template for Cairo
5049 Updates for 2004 Cairo release
5048 Cairo readiness
4878 Various minor fixes, and added stand-alone (first) version
4788 Added "overwrite" to installation copy
4781 Moved topic to TWiki web, incorporated changes from Dev topic
4777 Initial revision
11 Mar 2005 Fixes for: text not sticking to boxes, blank lines in text, and lost text styles
22 Nov 2004 Unicode fixes courtesy of Won-kyu Park
16 Aug 2004 Map support finally released
17 Feb 2003 Bug fixes; incoporated TWiki:Main/BertrandDelacretaz's fix for too many colours in GIF. He had problems when saving images from macosx / JDK 1.3.1 and modified the applet to reduce the number of colors before converting to GIF, if needed. Without this he would sometimes get the "too many colors for a GIF" error when saving drawings.
30 Sep 2002 Add support for URLs, EXTRA_COLORS, fixed a number of outstanding bugs
20 Feb 2002 Merged TWiki:Main/RobWalker's fixes for text attached to figures
01 Oct 2001 Updated this text
23 Sep 2001 Initial version
Dependencies: Java 1.1 enabled browser
Plugin Home: http://TWiki.org/cgi-bin/view/Plugins/TWikiDrawPlugin
Feedback: http://TWiki.org/cgi-bin/view/Plugins/TWikiDrawPluginDev
Appraisal: http://TWiki.org/cgi-bin/view/Plugins/TWikiDrawPluginAppraisal

Additional copyright info:

  • TWikiDrawPlugin is based on Erich Gamma's JHotDraw 5.1. (JHotDraw is copyright 1996, 1997 by IFA Informatik and Erich Gamma, erich_gamma@acmPLEASENOSPAM.org . It is hereby granted that this software can be used, copied, modified, and distributed without fee provided that this copyright notice appears in all copies. )
  • TWikiDrawPlugin uses ACME Labs' GifEncoder to convert a drawing into a GIF file format. (GifEncoder is Copyright ©1996,1998 by Jef Poskanzer, jef@acmePLEASENOSPAM.com . All rights reserved. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. )
  • TWikiDrawPlugin uses some ideas of KmWiki drawing applet.
  • Copyright 2000 by Peter Thoeny, Peter[at]Thoeny.org. It is hereby granted that this software can be used, copied, modified, and distributed without fee provided that this copyright notice appears in all copies.
  • Modifications Copyright © 2001 Motorola. All Rights Reserved.
  • Modifications © 2003-2004 Copyright Crawford Currie http://www.c-dot.co.uk

Related Topics: VarDRAWING, TWikiPreferences, TWikiPlugins
