Metadata Repository

Motivation

  • If you have hundreds or thousands of webs on a TWiki site, web metadata stored in a data repository is useful.
    • It can make things more efficient. For example, you can get the list of webs without traversing a directory hierarchy.
    • It can make things otherwise impossible possible. For example, you can have metadata of a web which is not suitable to put on WebPreferences.
  • If you run a federation of TWiki sites (detail later), each site needs to have site metadata of the others.
  • Provided that you need to handle both site and web metadata, a uniform manner to handle those is handy.
  • There are cases where other kinds of metadata needs to be handled.

Basics

It's optional

The repository being for a large site having hundreds or thousands of webs, its use is optional. It's activated only if the site owner explicitly turns on the metadata repository.

Structure

  • The repository houses data tables such as the site metadata table and the web metadata table.
  • A table consists of records which have unique names. A web metadata record is named by the web name.
  • A record consists of fields, each of which consists of a field name and a value. A field name is unique in a record and a field value is a string.

Examples

Here's how a metadata repository would be used by federated TWiki sites.

Federation of sites

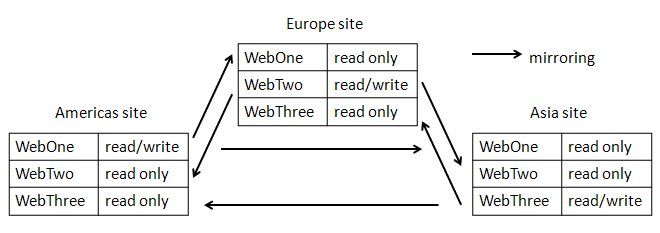

Let's assume the following federation of TWiki sites.

  • It consists of three TWiki sites - in Americas, Europe, and Asia.
  • All sites in the federation have the same set of webs.
  • Each web in the federation has one master site where update happens. This means that a web is read-only on a non master site.
    • Let's say WebOne's master is Americas site, WebTwo's Europe, and WebThree's Asia.
    • Each site mirrors sites whose master is not local periodically.
      • Americas site mirrors WebTwo and WebThree.
      • Europe site mirrors WebOne and WebThree.
      • Asia site mirrors WebOne and WebTwo.
      • Mirroring is basically copying files using the rsync command.


Web admins

If there are many webs, it may not be easy to get hold of people responsible for a web. So it's handy if all webs have their admins clearly defined. Given that, let's assume we define admins for each web and store as a part of web metadata.

Site metadata and web metadata fields

The following fields are needed in a site metadata record to implement the federation shown above.

  • server
  • data directory path on the server
  • pub directory path on the server
And the site metadata table is as follows.
Name Server DataDir PubDir
am strawman /d/twiki/data /d/twiki/pub
eu woodenman /var/twiki/data /var/twiki/pub
as tinman /share/twiki/data /share/twiki/pub

And the following fields in the web metadata.

  • admin group
  • master site
The web metadata table is as follows.
Name Admin Master
WebOne GodelGroup am
WebTwo EscherGroup eu
WebThree BachGroup as

How to get and put data - overview

  • You can retrieve data from the metadata repository using %MDREPO{...}%.
  • You can put data by the mdrepo script. It works from browser as well as command line.
Using these, you can construct a web interface to display and manipulate the webs table as follows.
Initial Letters:
Name Admin Master Load Row

WebOne GodelGroup am do
WebThree BachGroup as do
WebTwo EscherGroup eu do

mdrepo script from command line

Go to the bin directory then you can use the mdrepo script in the following format: ./mdrepo COMMAND ARGUMENT ... Arguments depend on the command.

mdrepo show TABLE RECORD_ID

Shows the specified record of the specified table.

Example:

$ ./mdrepo show sites am
am
    datadir=/d/twiki/data
    pubdir=/d/twiki/pub
    server=strawman

mdrepo list TABLE

Shows all the records of the specified table.

Example:

$ ./mdrepo list sites
am
    datadir=/d/twiki/data
    pubdir=/d/twiki/pub
    server=strawman

as
    datadir=/share/twiki/data
    pubdir=/share/twiki/pub
    server=tinman

eu
    datadir=/var/twiki/data
    pubdir=/var/twiki/pub
    server=woodenman

mdrepo add TABLE RECORD_ID FIELD_NAME=VALUE ...

Adds a new record. It returns nothing. If the specified record already exists, it complains.

Example:

$ ./mdrepo add webs WebFour admin=HofstadterGroup master=am

mdrepo updt TABLE RECORD_ID FIELD_NAME=VALUE ...

Update an existing record. It returns nothing. If the specified record does not exist, it complains.

Example:

$ ./mdrepo updt webs WebFour admin=GardnerGroup master=am

mdrepo del TABLE RECORD_ID

Deletes an existing record. It returns nothing. If the specified record does not exist, it complains.

Example:

$ ./mdrepo del webs WebFour admin=GardnerGroup master=am

mdrep load TABLE FILE

Loads records to the specified table from the specified file. The file content is in the same format as the list command's output. Nonexistent records are created. Existing records are updated.

Example:

$ ./mdrepo load /var/tmp/temp-webs

mdrepo rset TABLE

Makes the specified table empty. It returns nothing.

Example:

$ ./mdrepo rset sites

mdrepo script from browser

Restrictions

Compared with command line use, browser use of mdrepo script is restricted for risk mitigation.

  • Only the users having ALLOWROOTCHANGE permission can use it.
  • Only tables allowed to be modified from browser explicitly can be manipulated. See Configuration for detail.
    • Site metadata is only rarely updated hence update from browser is not highly convenient. Still, if it's modified in a wrong manner, the damage damage can be huge. As such, many people would think that site metadata is not suitable for browser update.
  • Only the following commands are available: add, updt, del
    • show and list commands are not needed because %MDREPO{...}% does those jobs.
    • load and rset are rather dangerous.

URL parameters

mdrepo script checks

  • if the _add parameter is true (a string other than "0" or "" (zero length string)
  • otherwise checks if the _updt parameter is true
  • otherwise checks if _del is true
The command is determined this way.

The table and the record ID are specified by the _table and _recid parameters.

Field values are specified by parameters of the =__FIELD_NAME format.

For example, submitting the following form has the same effect as the command line shown further below.

<form action="%SCRIPTURL%/mdrepo" method="post">
<input type="hidden" name="_add" value="add"/>
<input type="hidden" name="_table" value="webs"/>
<input type="hidden" name="_recid" value="WebFour"/>
<input type="hidden" name="__admin" value="GardnerGroup"/>
<input type="hidden" name="__master" value="am"/>
<input type="submit"/>

$ ./mdrepo add webs WebFour admin=GardnerGroup master=am

Output

By default, the script's output is in the text/plain MIME type. If the command succeeds, it returns nothing. When something goes wrong, an error message is returned.

If redirectto URL parameter is provided, the script returns HTTP redirect to the specified URL. If the redirectto parameter contains %RESULT%, it's replaced by the message to be shown when redirectto is not specified.

Configuration

To turn on the metadata repository, you need to have the following three settings.

$TWiki::cfg{Mdrepo}{Store} = 'DB_File';
$TWiki::cfg{Mdrepo}{Dir} = '/var/twiki/mdrepo';
$TWiki::cfg{Mdrepo}{Tables} = [qw(sites webs:b)];
$TWiki::cfg{Mdrepo}{Store}
Specifies a tie-able Perl class.
$TWiki::cfg{Mdrepo}{Dir}
Specifies a path to a directory where the MdrepoStore class have files.
$TWiki::cfg{Mdrepo}{Tables}
Specifies the names of the tables used. A table name may be followed by a colon and options. "b" is currently the only option recognized, which means the table can be updated from browser.

By the following setting, each web required to have its metadata record.

$TWiki::cfg{Mdrepo}{WebRecordRequired} = 1;
For a large site having thousands of webs, this is handy for site management. Specifically this brings the following behaviors.
  • A web not having a web metadata record regarded as nonexistent. Existence of a directory under $TWiki::cfg{DataDir} isn't enough.
  • A web creation by ManagingWebs is rejected if the corresponding web metadata is not present. Similarly, a web cannot be renamed to a web whose top level web doesn't have its web metadata record.
  • %WEBLIST{...}% gets faster referring to web metadata rather than traversing a directory hiearchy. For practicality, only top level webs are listed except with the current web -- the current web's ancestors and decendants are listed.

Audit trail

When the mdrepo script is used either from command line or browser, if the command is either add, updt, del, or rset, it's recorded on the log file in the same manner as other scripts. Specifically, the activity is put on the 5th column.

Command 5th column format
add add TABLE RECORD_ID FIELD_NAME=VALUE ...
updt cur TABLE RECORD_ID FIELD_NAME=VALUE ...
updt TABLE RECORD_ID FIELD_NAME=VALUE ...
del cur TABLE RECORD_ID FIELD_NAME=VALUE ...
del TABLE RECORD_ID
rset cur TABLE RECORD_ID FIELD_NAME=VALUE ...
cur TABLE RECORD_ID FIELD_NAME=VALUE ...
...
rset TABLE
As the table above suggests, updt, del, and rset commands put multiple log entries so that the previous values are recorded. Here's an example of log entries left by a updt operation.
| 2012-06-15 - 13:16 | guest | mdrepo | TemporaryTestWeb.TestTopic | cur sites am datadir=/d/twiki/data pubdir=/d/twiki/pub server=strawman |  |
| 2012-06-15 - 13:16 | guest | mdrepo | TemporaryTestWeb.TestTopic | updt sites am datadir=/d/twiki/dat pubdir=/d/twiki/pu server=strawma |  |
When the mdrepo script is used from a command line, the topic name on the log is always Main.WebHome.

Audit trail is there by default. In case you want to suppress it, you can do it by setting a false value to $TWiki::cfg{Log}{mdrepo} configuration preference.

Only for top level webs

For practicality, web metadata is only for top level webs. More accurately, a subweb has the same web metadata as its parent.

The reason is that site administration gets complicated if subwebs can have different web metadata.

Related Topics: AdminDocumentationCategory, AutonomousWebs, ReadOnlyAndMirrorWebs, UsingMultipleDisks, UserMasquerading
