TWiki Draw Plugin

This plugin encapsulates the TWikiDraw Java Applet first developed by TWiki:Main/PeterThoeny from the original JHotDraw.

JHotDraw is a simple drawing editor that supports drawing in a style similar to that found in MS Powerpoint and MS Word. Various shaped figures can be placed in the drawing and text annotations joined to them.

Unique to TWikiDrawPlugin, a drawing can also have a "map" which makes figures in the drawing sensitive to the mouse cursor. A map is automatically added to an image when a URL is attached to any of the figures.

How you edit a drawing depends on whether the drawing has a map and the setting of the "EDIT_BUTTON" option. A drawing with no map can be edited simply by clicking on the drawing. A drawing with a map can be edited by clicking the edit button or, failing that, on the boundary of the image.

Browser support for Java 1.1 or later required.

Syntax Rules

  • Write the command %DRAWING{name}% anywhere in a TWiki topic. You can name the drawing anything you like, allowed characters are A-Z a-z 0-9 _ - . . If you have only one drawing in the topic you can simply write %DRAWING% .

Tools

The tools on the left create or manipulate figures.

Selection selects, moves or resizes a figure; the shift-key toggles the selection. Dragging the selection tool in the background selects the figures within the dragged rectangle.
Text creates a new or edits an existing text figure
Connected Text creates a new text figure and attaches it to the clicked figure. Once a text figure is attached it remains connected to the figure.
Rectangle creates a rectangle figure
Round Rectangle creates a round rectangle figure
Ellipse creates an ellipse figure
Line creates a line figure
Connection Line creates or adjusts connections between figures. A connection is split into segments by dragging a point on the connection. To join two segments click the end point of a segment
Elbow Connection Line creates an elbow connection and offers the same features as the ordinary connection tool
Scribble creates a scribble figure; dragging the mouse creates a smooth line while successive clicks yields a polyline figure. A two-button click terminates the figure.
Polygon creates a polygon figure; dragging the mouse creates a smooth border while successive clicks yields a polyline border. A two-button click or the ESCAPE key terminates the figure.
Border decorates the clicked figure with a border
URL adds a sensitive area to the figure that will redirect to a URL. If an image contains any sensitive areas it can only be selected for edit by clicking on the boundary or (if enabled) the attached Edit button. You can use wikiwords and web.topic wiki link expressions as well as full URLs.

Handles

When selected, figures provide different handles to manipulate them.

  • the filled red handles enable you to manipulate the shape of a figure
  • the blue circle handle is a connection handle. It allows you to create connections between figures.
  • the framed red handles are null handles. They only show the selection status of a figure but don't support any manipulation.
  • the green handles are shown on connections. They enable you to reconnect them with another figure.
  • the yellow handle enables you to change the font size of a text figure or the size of the radius of a rounded rectangle.

Commands

Commands are invoked from the button bar at the bottom or from the menu bar at the top.

The standard commands that are provided include cut, copy, paste, duplicate, delete, group, ungroup, bring to front, and send to back.

Attributes

Attributes, such as fill color, text color or arrow tip, can be changed through the attributes menus.

TWikiDrawPlugin Settings

  • Set SHORTDESCRIPTION = Drawing editor
Extra colors to be added to the menu of colors in the applet, as a comma-separated list with colors in HTML format (see StandardColors)
  • Set EXTRA_COLORS = Aquamarine=#70DB93,New Tan=EBC79E,Sea Green=238E68,Motorola Blue=#3ff
Set to 1 if an "Edit" button is to be generated attached to the image. You will still be able to edit it by clicking on the boundary of the image.
  • Set EDIT_BUTTON = 1
Edit text defined here so you can change it for local languages. Text is shown when you hover over the image, and for the edit button. %F% will be replaced by the drawing name.
  • Set EDIT_TEXT = Edit drawing '%F%' (requires a Java 1.1 enabled browser)

Plugin Installation Instructions

  • Download the ZIP file from the Plugin web (see below). Contents:
    File: Description:
    data/TWiki/TWikiDrawPlugin.txt
    lib/TWiki/Plugins/TWikiDrawPlugin.pm
    lib/TWiki/Plugins/TWikiDrawPlugin/source.zip Zip of java sources
    pub/TWiki/TWikiDrawPlugin/ATEXT1.gif
    pub/TWiki/TWikiDrawPlugin/ATEXT2.gif
    pub/TWiki/TWikiDrawPlugin/ATEXT3.gif
    pub/TWiki/TWikiDrawPlugin/BORDDEC1.gif
    pub/TWiki/TWikiDrawPlugin/BORDDEC2.gif
    pub/TWiki/TWikiDrawPlugin/BORDDEC3.gif
    pub/TWiki/TWikiDrawPlugin/CONN1.gif
    pub/TWiki/TWikiDrawPlugin/CONN2.gif
    pub/TWiki/TWikiDrawPlugin/CONN3.gif
    pub/TWiki/TWikiDrawPlugin/DIAMOND2.gif
    pub/TWiki/TWikiDrawPlugin/DIAMOND3.gif
    pub/TWiki/TWikiDrawPlugin/ELLIPSE1.gif
    pub/TWiki/TWikiDrawPlugin/ELLIPSE2.gif
    pub/TWiki/TWikiDrawPlugin/ELLIPSE3.gif
    pub/TWiki/TWikiDrawPlugin/ERASER2.gif
    pub/TWiki/TWikiDrawPlugin/ERASER3.gif
    pub/TWiki/TWikiDrawPlugin/example.draw
    pub/TWiki/TWikiDrawPlugin/example.map
    pub/TWiki/TWikiDrawPlugin/example.gif
    pub/TWiki/TWikiDrawPlugin/LINE1.gif
    pub/TWiki/TWikiDrawPlugin/LINE2.gif
    pub/TWiki/TWikiDrawPlugin/LINE3.gif
    pub/TWiki/TWikiDrawPlugin/OCONN1.gif
    pub/TWiki/TWikiDrawPlugin/OCONN2.gif
    pub/TWiki/TWikiDrawPlugin/OCONN3.gif
    pub/TWiki/TWikiDrawPlugin/PERT2.gif
    pub/TWiki/TWikiDrawPlugin/PERT3.gif
    pub/TWiki/TWikiDrawPlugin/POLYGON1.gif
    pub/TWiki/TWikiDrawPlugin/POLYGON2.gif
    pub/TWiki/TWikiDrawPlugin/POLYGON3.gif
    pub/TWiki/TWikiDrawPlugin/RECT1.gif
    pub/TWiki/TWikiDrawPlugin/RECT2.gif
    pub/TWiki/TWikiDrawPlugin/RECT3.gif
    pub/TWiki/TWikiDrawPlugin/RRECT1.gif
    pub/TWiki/TWikiDrawPlugin/RRECT2.gif
    pub/TWiki/TWikiDrawPlugin/RRECT3.gif
    pub/TWiki/TWikiDrawPlugin/SCRIBBL1.gif
    pub/TWiki/TWikiDrawPlugin/SCRIBBL2.gif
    pub/TWiki/TWikiDrawPlugin/SCRIBBL3.gif
    pub/TWiki/TWikiDrawPlugin/SEL1.gif
    pub/TWiki/TWikiDrawPlugin/SEL2.gif
    pub/TWiki/TWikiDrawPlugin/SEL3.gif
    pub/TWiki/TWikiDrawPlugin/TEXT1.gif
    pub/TWiki/TWikiDrawPlugin/TEXT2.gif
    pub/TWiki/TWikiDrawPlugin/TEXT3.gif
    pub/TWiki/TWikiDrawPlugin/TOBACK2.gif
    pub/TWiki/TWikiDrawPlugin/TOBACK3.gif
    pub/TWiki/TWikiDrawPlugin/TOFRONT2.gif
    pub/TWiki/TWikiDrawPlugin/TOFRONT3.gif
    pub/TWiki/TWikiDrawPlugin/TRIANGLE2.gif
    pub/TWiki/TWikiDrawPlugin/TRIANGLE3.gif
    pub/TWiki/TWikiDrawPlugin/URL1.gif
    pub/TWiki/TWikiDrawPlugin/URL2.gif
    pub/TWiki/TWikiDrawPlugin/URL3.gif
    pub/TWiki/TWikiDrawPlugin/twikidraw.jar JAR file for applet
    templates/twikidraw.tmpl Template for drawing editor
    TWikiDrawPlugin_installer.pl Install script

  • Unzip TWikiDrawPlugin.zip in your twiki installation directory.

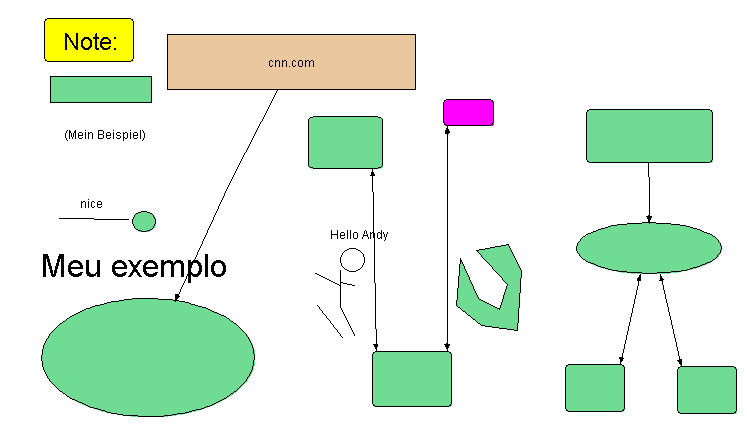

  • To test if the plugin is correctly installed, view this topic in the installation and you should see a placeholder box below. Click on it.

    Edit
    Sandbox.TWikiDrawingExamplesEdit drawing `empty` (requires a Java 1.1 enabled browser)Edit drawing `empty` (requires a Java 1.1 enabled browser)Edit drawing `empty` (requires a Java 1.1 enabled browser)Edit drawing `empty` (requires a Java 1.1 enabled browser)

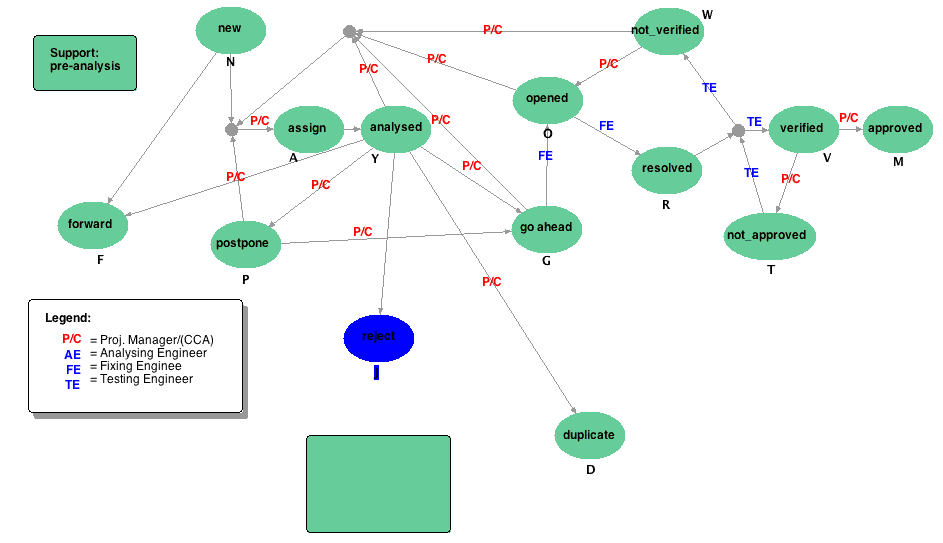

  • Here's an example using an image map. Move the mouse over the image and watch the status bar.
    Edit
    ReOpenDifferentProjectSomeDayOhNoNotAgainAnotherDayDifferentProjectReAssignReAssignReAssignReCycleSackTheFixerWasteOfTimeReAssignUnVerifItsOkVeriFriedUnApproReSolvedOpeNedDooPlicateReJectPostPoneGoAheadAnalYsedAsSignNewBugForWardGetHelpPreAnalysisTestTopicEdit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)Edit drawing `example` (requires a Java 1.1 enabled browser)

Known Problems

If you add a map to a drawing by setting a URL on any of the figures a map file is created. If you subsequently remove all the URLs from figures in the drawing the map still exists, but is now empty. There is no way to remove the map other than by manually moving the attachment.

Plugin Info

Plugin Author: TWiki:Main/CrawfordCurrie http://www.c-dot.co.uk
Plugin Version: 1.101
Change History:
  16 Aug 2004: Map support finally released
  17 Feb 2003: Bug fixes; incoporated TWiki:Main/BertrandDelacretaz's fix for too many colours in GIF. He had problems when saving images from macosx / JDK 1.3.1 and modified the applet to reduce the number of colors before converting to GIF, if needed. Without this he would sometimes get the "too many colors for a GIF" error when saving drawings.
  30 Sep 2002: Add support for URLs, EXTRA_COLORS, fixed a number of outstanding bugs
  20 Feb 2002: Merged TWiki:Main/RobWalker's fixes for text attached to figures
  1 Oct 2001: Updated this text
  23 Sep 2001: Initial version
Dependencies: Java 1.1 enabled browser
None
Plugin Home: http://TWiki.org/cgi-bin/view/Plugins/TWikiDrawPlugin
Feedback: http://TWiki.org/cgi-bin/view/Plugins/TWikiDrawPluginDev

Related Topics: TWikiPreferences, TWikiPlugins

  • TWikiDrawPlugin is based on Erich Gamma's JHotDraw 5.1. (JHotDraw is copyright 1996, 1997 by IFA Informatik and Erich Gamma, erich_gamma@acmPLEASENOSPAM.org . It is hereby granted that this software can be used, copied, modified, and distributed without fee provided that this copyright notice appears in all copies. )
  • TWikiDrawPlugin uses ACME Labs' GifEncoder to convert a drawing into a GIF file format. (GifEncoder is Copyright ©1996,1998 by Jef Poskanzer, jef@acmePLEASENOSPAM.com . All rights reserved. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. )
  • TWikiDrawPlugin uses some ideas of KmWiki drawing applet.
  • Copyright 2000 by Peter Thoeny, Peter@ThoenyPLEASENOSPAM.com. It is hereby granted that this software can be used, copied, modified, and distributed without fee provided that this copyright notice appears in all copies.
  • Modifications Copyright © 2001 Motorola. All Rights Reserved.
  • Modifications © 2003-2004 Copyright Crawford Currie http://www.c-dot.co.uk

-- TWiki:Main/CrawfordCurrie - 11:22:35 14 September 2004
