This is the presentation material for the talk on "Regular Expressions: To Match Or Not, That is the Question" at Silicon Valley Code Camp, PayPal, San Jose, CA, 2017-10-08. Peter Thoeny prepared this talk for developers who want to scan and process text quickly.

Presentation View the slides of this presentation.

    Copyright © 2017 by TWiki.org. This presentation may be reproduced as long as the copyright notice is retained and a link is provided back to http://twiki.org/.

Start Presentation

Slide 1: Regular Expressions: To Match Or Not, That is the Question




Presentation for Silicon Valley Code Camp, 2017-10-08

-- Peter Thoeny - @PeterThoeny - peter09[at]thoeny.org - TWiki.org

Slide 2: About Peter Thoeny

Slide 3: Manipulating Text: The Conventional Way

  • Task: Process text to:
    • validate input
    • change text from one format to another
    • extract snippets of text (e.g. screen scraping), ...
  • Text manipulation using procedural Perl:
    $i = index( $sString, $sSubString );
    $str = substr( $sOldString, 4 );
    $i = length( $sString );
    $str = join( ':', split( '', $sString ) );
    # chomp, chr, hex, lc, ord, pack, sprintf, uc, ... (details)
    # Many CPAN modules...

Slide 4: Manipulating Text: The Object Oriented Way

  • Text manipulation using OO Perl:
    use String;
    my $str = new String( "Perl" );
    printf( "Length: %d\n", $str->length );
    printf( "First char: %s\n", $str->charAt( 0 ) );
    printf( "Position of 'er': %d\n", $str->indexOf( 'er' ) );
  • Details: CPAN:String

Slide 5: Regular Expression in Wikipedia


Slide 6: Why use regular expressions?

  • "Wildcard on steroids" - *.txt becomes .*\.txt$
  • Process large amounts of text over and over again
  • Very powerful and flexible
  • Extremely fast

  • But: There is a learning curve

Slide 7: xkcd: Regular Expressions


Slide 8: Manipulating Text: Use Regular Expressions

  • Match a string with a regex pattern:
    if( $str =~ m/.../ ) {
      # ...
    }
  • Replace a pattern with a string:
    $str =~ s/.../.../;  # Perl syntax
    var newstr = str.replace( /.../, "..." );  // JavaScript syntax
  • split up a string using a regex delimiter:
    my @items = grep { /.../ } split( /\s*,\s*/, $str );
  • There is also: (details)
    • pos
    • qr/STRING/
    • quotemeta

Slide 9: Regular Expression Basics

  • Color code used in examples:
    • Hello World. - string we operate on (teletype)
    • regex - regular expression (red)
    • match - match we found in string (green)

  • /l/ - single character: Hello World.
    • second and third match: Hello World.
  • /or/ - character sequence: Hello World.
  • Metacharacters with special meaning: ( ) parenthesis, [ ] square brackets, { } curly braces, \ backslash, ^ caret, $ dollar, . period, | vertical bar, * asterisk, + plus
  • /\./ - escape metacharacter: Hello World.
  • /./ - without escape: Hello World.

Slide 10: Regular Expression Basics: Character Sets

  • /[oe]/ - one char out of several chars: Hello World.
    • second and third match: Hello World.
  • /H[ea]llo/ - match Hello and Hallo: Hallo World.
  • /[0-9]/ - match range of chars: ID3735.
  • /#[0-9a-f][0-9a-f][0-9a-f][0-9a-f][0-9a-f][0-9a-f]/ - match hex color: Color: #ff4444.
  • /W[^x]/ - negate a character set: Hello World.
  • /[^0-9]/ - any non-digit: ID3735.

Slide 11: Regular Expression Basics: Shorthand Character Sets

  • /\d/ - match a digit: ID3735.
  • /\s/ - whitespace (space, tabs, line breaks) : Hello World.
  • /\w/ - match a "word character" (alphanumeric chars & underscore) : Hello World.
  • /\s\w/ - whitespace followed by word char: Hello World.

Slide 12: Regular Expression Basics: Special Character Sets

  • /\t/ - match a tab character (ASCII 0x09)
  • /\r/ - match a carriage return (0x0D)
  • /\n/ - match a line feed (0x0A)
  • /\r\n/ - match a Windows line end
  • /\x5E/ - match a specific character by its hexadecimal index in the character set, e.g. a caret ^

Slide 13: Regular Expression Basics: Period (Dot)

  • /./ - dot matches a single char, except line break chars: Hello World.
    • "dot matches all" or "single line" mode possible that makes the dot match also line breaks
  • /[^\n]/ - long version of /./ on Unix: Hello World.
  • /[^\r\n]/ - long version of /./ on Windows: Hello World.
  • /H.llo/ - grok English and German: Hallo World.

Slide 14: Regular Expression Basics: Anchors

  • Anchors don't match any characters - they match a position in a string.
  • /^/ - match at the start of the string: |Hello World.
    • "Multi-line" mode possible that makes /^/ match after any line break
  • /$/ - match at the end of the string: Hello World.|
  • /\b/ - match at a word boundary: |Hello World.
    • second match: Hello| World.
  • /\B/ - match at every position where \b cannot match: H|ello World.

Slide 15: Regular Expression Basics: Alternation (Logic OR)

  • /dog|cat|fish/ - alternation: I like cats and dogs.
    • second match: I like cats and dogs.

  • What about logic AND? Stay tuned.

Slide 16: Regular Expression Basics: Repetition

  • /colou?r/ - a question mark ? matches preceding token in regex zero or one time: Red colour.
  • /<[a-zA-Z][a-zA-Z0-9]*>/ - an asterisk * matches zero or multiple times: <tt> text </tt>
  • hex-color-visual.png /#[0-9a-f]+/ - a plus + matches one or multiple times: Color: #ff4444.
  • /<[a-zA-Z0-9]+>/ - what is the problem with this? <tt> text </tt>

Slide 17: Regular Expression Basics: More Repetition

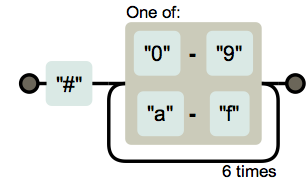

  • /#[0-9a-f]{6}/ - curly braces { } match a specific number of times: Color: #ff444400.
  • /\b[1-9][0-9]{3}\b/ - match a number between 1,000 and 9,999: Value 3500.
  • /\.[a-zA-Z]{2,6}\// - match a specific range of times: http://bma.art.museum/

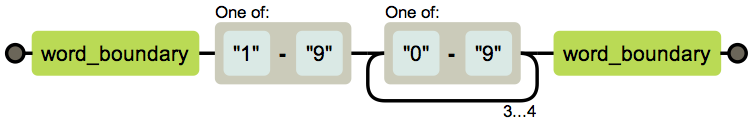

  • /\b[1-9][0-9]{3,4}\b/ - match a number between 1,000 and 99,999: Range 3500.

Slide 18: Regular Expression Basics: Greedy and Lazy Repetition

  • Greedy repetition: "Use up as much stuff as possible" - this is the default
    • /<.+>/ - greedy repetition: <tt> fixed </tt> text.

  • Lazy or non-greedy repetition: "Use as little stuff as possible" - add a ? to the qualifier
    • /<.+?>/ - non-greedy repetition: <tt> fixed </tt> text.
    • /<\/?[^<>]+>/ - similar, but faster: <tt> fixed </tt> text.
      • second match: <tt> fixed </tt> text.

Slide 19: Regular Expression Basics: Grouping and Backreferences

  • Purpose: Enclose tokens in parenthesis to group them together for later reference.
    • In Perl, $1 holds the content of the first group, $2 the second, ...
  • /Ready, (set)/ - test for mandatory sub-string, set is captured: Ready, set, go.
    • if( $str =~ m/Ready, (set)/ ) { print "found $1\n"; }
  • /Ready, (set)?/ - test for optional sub-string, set is captured: Ready, set, go.

  • Grouping without creating a capturing group:
    • /Ready, (?:set[,\s]*)?/ - test for optional sub-string without capturing: Ready, set, go.

Slide 20: Regular Expression Basics: Grouping for Search and Replace

  • Task: Switch the first two words:
    my $str = "that is the question";
    $str =~ s/(\w+)([^\w]+)(\w+)/$3$2$1/;
    # matched: "that is the question"
    # result:  "is that the question"

Slide 21: Regular Expressions: Complete Example

Slide 22: Performance

  • Example: Read & parse 10K lines of CSV file

  • Native ColdFusion: 100,000 ms
  • ColdFusion with regex: 11,000 ms
  • Source: Ben Nadel blog

  • Native Perl regex with I/O: 15.8 ms
  • Native Perl regex without I/O: 3.5 ms

Slide 23: Regular Expressions: Modifiers

  • Matching operations can have various modifiers to change the behavior.
  • Example: To change a string into title case we have to find the first character of every word and change it to upper case.
    • The "every" part is done with the "g" (global) modifier
    • The "upper case" part is done by calling the uc() function using the "e" (execute) modifier
  • my $str = "this is my regex world.";
    $str =~ s/\b(\w)/uc($1)/ge;
    # matches: this is my regex world.
    # result:  This Is My Regex World.
  • More modifiers, see http://perldoc.perl.org/perlre.html

Slide 24: Advanced Regular Expressions: Lookaround

  • Purpose: Test for "stuff" before or after the current location, without capturing

  • /c(?=k)/ - positive lookahead: Matches quick but not active
  • /c(?!k)/ - negative lookahead: Matches active but not quick
  • /(?<=a)b/ - positive lookbehind
  • /(?<!a)b/ - negative lookbehind

Slide 25: Advanced Regular Expressions: Logical AND

  • Question: How can I do a logical AND using regex?

  • A1: Use logical OR with permutation:
    /foo.*bar|bar.*foo/ - not practical with many ANDs

  • A2: Use positive lookahead to test for each item:
    if( $str =~ m/^(?=.*foo)(?=.*bar)(?=.*baz)/s ) {
        print "found foo, bar and baz\n";
    }
  • Note: If one of the positive lookaheads fails, the whole regex fails, hence logical AND

Slide 26: Advanced Regular Expressions: Backreference in Regex

  • Backreferences can be used to reuse part of a regex match within the regex itself.
  • \1 contains the content of the first group, \2 the second, ...
  • Use case: For any HTML tag find the matching end tag and capture everything in between.
  • my $str = "This is <i>italic text</i>.";
    if( $str =~ m/<([a-z][a-z0-9]*)\b[^>]*>(.*?)<\/\1>/ ) {
        # match: This is <i>italic <b>bold</b> text</i>.
        print "found $2\n"; # $2 contains: italic <b>bold</b> text
    }
  • Note: <\/\1> identifies the matching HTML end tag. The \/ is an escaped slash, \1 contains the tag name found in the first group.

Slide 27: Advanced Regular Expressions: Parse Nested Structures

  • TWiki's SpreadSheetPlugin uses regular expressions to parse and evaluate formulas.
  • Task: Parse and evaluate the following using regular expressions:

Slide 28: Regular Expression Puzzle

  • Print this puzzle, and use pencil and eraser!
    regex-crossword-puzzle

This regular expression crossword was created by Dan Gulotta from an idea by Palmer Mebane, and was part of MIT's Mystery Hunt in 2013.

Slide 29: Resources: Online References and Books

  • Book: Introducing Regular Expressions, by Michael Fitzgerald, O'Reilly Media, ISBN:1449392687
  • Book: Mastering Regular Expressions, by Jeffrey E.F. Friedl, O'Reilly Media, ISBN:0596528124

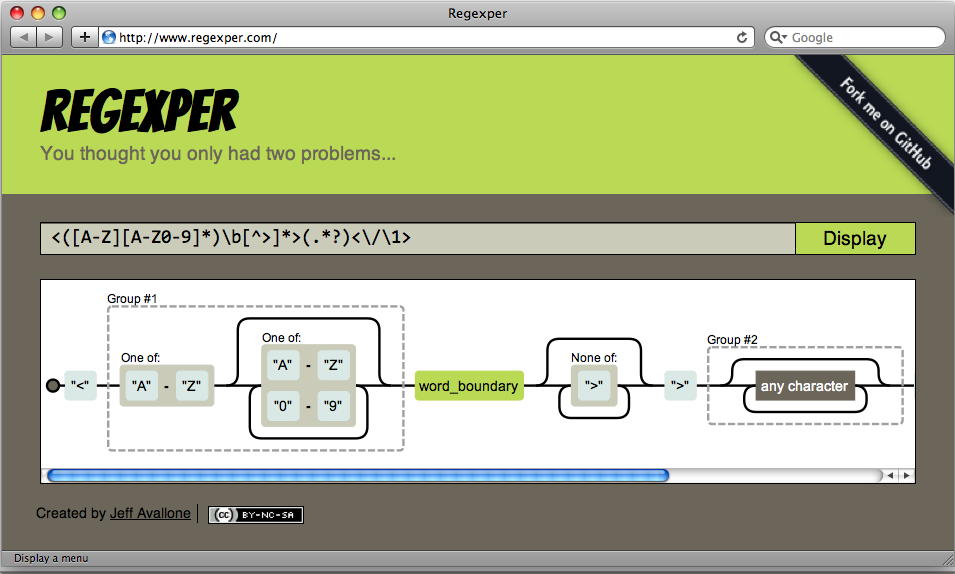

Slide 30: Resources: Visualize Regular Expressions

Slide 31: Resources: Online Regular Expression Tester

Slide 32: Questions & Discussions








This presentation:

http://bit.ly/regexSVCC   (http://twiki.org/cgi-bin/view/Codev/TWikiPresentation2017x10x08Regex)

Slide 33: BACKUP SLIDES












BACKUP SLIDES






Slide 34: What is TWiki?

  • twiki-logo-200x72.png TWiki is a wiki engine and wiki application platform, established in 1998
  • TWiki is specifically built for the workplace
  • Large number of TWiki Extensions: 200+ actively maintained extensions
  • Open Source software (GPL) with active community, hosted at http://TWiki.org/
  • 1,000 downloads per month, 600,000 total downloads, estimate 50,000+ installations, 130+ countries
  • Est. $27M of human capital invested (ref. Ohloh)
  • Source Forge 2009 "Best Enterprise Project" Finalist (among 230,000 open source projects)

Slide 35: TWiki Open Source Community

Slide 36: TWiki I/O Architecture
