This is the keynote presentation for the Silicon Valley Linux User Group (SVLUG) at Cisco in San Jose, CA on 07 Jan 2004.

Start Presentation

Slide 1: Web Collaboration with TWiki

Writeable webs empower employees to share knowledge and to be more productive

  • Knowledge intensive companies try to keep their Intranet up-to-date and to share knowledge efficently
  • Wiki is an emerging web-based technology which enables teams to organize and share content in an organic and free manner
  • TWiki is both a leading open-source Wiki for the enterprise and a web based collaboration platform
  • This talk explains what TWiki is, its history, how it is used, and how to get started

Presentation for Silicon Valley Linux User Group (SVLUG) on 07 Jan 2004

-- Peter@ThoenyPLEASENOSPAM.com

Slide 2: Agenda

  • Challenges of Intranets, Distributed Teams, CMS
  • What is knowledge?
  • What is a Wiki? What is TWiki?
  • Highlights & limitations of TWiki
  • Advanced Features, Web Applications
  • Initial Deployment
  • Collaboration Issues
  • Case Study Wind River
  • Summary
  • Questions & Answers

Slide 3: Challenges of Intranets

  • Some content is outdated
  • The quantity is limited
  • Difficult to find content; inconsistent
  • Special tools and knowledge required to maintain
  • Content is static, it has a "one webmaster syndrome":
    If I discover a page on the Intranet that has incorrect or insufficient information, I just ignore it because I am too busy to find out who the webmaster is and to write an e-mail requesting an update

Slide 4: Challenges of Distributed Teams

  • Open questions:
    • How to get a virtual team working together efficiently?
    • How to get everyone in sync?
    • How to avoid duplicate efforts?
  • Typical answers:
    • Scheduled conference calls
    • Occasional visits
    • Shared drives
    • Exchange documents by e-mail
    • Instant Messaging (IRC, AIM, ICQ, etc)

Slide 5: Challenges of Distributed Teams (cont.)

  • Issues with e-mail and mailing lists:
    • E-mail gets lost after some time
    • Search is limited to email client
    • Great for discussion, but ... hard to find 'final consensus' on a thread
    • E-mail is not hyper-linked and is not structured, content can't easily be grouped into related topics
    • E-mail and attachments are not version controlled, e.g. it is difficult to determine the history of a document

Slide 6: Challenges of CMS

  • Rigid structure (can be good and bad)
  • Control over content more important than free form knowledge sharing
  • Content is typically structured hierarchically or in table format, with limited cross-linking between pages
  • Limited support for unstructured content, or content that has "structure and exceptions"

Slide 7: What is Knowledge? How can it be Fostered?

  • Knowledge: The sum of what is known : the body of truth, information, and principles acquired by mankind
  • Can knowledge be managed? Von Krogh, Nonaka and Ichijo in Enabling Knowledge Creation, ISBN:0195126165, believe that knowledge can only be enabled
    • Management in the sense that you cannot force someone to innovate. We can only create an environment where knowledge can be created
  • Five key knowledge enablers:
    1. Instill a knowledge vision
    2. Manage conversations
    3. Mobilize knowledge activists
    4. Create the right context for knowledge creation
    5. Globalize local knowledge

Slide 8: What is a Wiki?

  • WikiWikiWeb = Writeable Web
    • As quick to contribute as e-mail,
    • as easy to use as a website
  • Ward Cunningham implemented the original WikiWiki in 1995 to collaborate on software patterns
  • Inspired by HyperCard
  • Design principles:
    • Open - Should a page be found to be incomplete or poorly organized, any reader can edit it as they see fit.
    • Incremental - Pages can cite other pages, including pages that have not been written yet.
    • Organic - The structure and text content of the site is open to editing and evolution.

Slide 9: What is a Wiki? (cont.)

  • The original WikiWiki has these features:
    • Read-write web, every page can be edited using just a browser
    • HTML form based editing
    • Pages are served dynamically
    • Pages are linked automagically with WikiWords
    • Simple markup, no need to learn HTML
  • Over 100 Wiki engines based on the original Wiki idea, mostly open source

Slide 10: Wikipedia

Wikipedia
  • Wikipedia: Wiki + Encyclopedia
  • A free encyclopedia that is being written collaboratively by its readers
  • Project was started in January 2001
  • The most active public Wiki: There are over 170,000 articles in English; more in other languages
  • Anyone in the world can edit any page.
  • Doesn't that lead to chaos?
    • Domain experts contribute
    • Well defined policies for contributing and handling content
    • Graffiti gets removed quickly (rollback available)
  • Content can be freely distributed and reproduced under the terms of the GNU Free Documentation License

Slide 11: Does Wiki fit into the Corporate World?

  • Issues with conventional Wiki systems in the enterprise:
    • Perceived as chaotic
    • No security
    • No audit trail
  • A Wiki system with the right extensions can be used in a corporate environment

Slide 12: What is TWiki?

  • TWiki started as a Wiki engine, but has outgrown its roots and is now a platform for web applications
  • Mission: "TWiki is a leading-edge, web-based collaboration platform targeting the corporate intranet world. TWiki fosters information flow within an organization; lets distributed teams work together seamlessly and productively; and eliminates the one-webmaster syndrome of outdated intranet content."
  • Open Source software (GPL), hosted at http://TWiki.org/

Slide 13: What is TWiki? (cont.)

  • A Wiki in the original sense, but also:
  • A shared notebook for projects: Repository, scheduling, meetings
  • A departmental collaboration tool: Processes, project reviews, QA tracking
  • An Intranet publishing tool: IT, HR, ISO standards
  • A CMS with focus on free-form collaboration: Requirements capture
  • A knowledge base: Problem/solution pairs with attached patches
  • A platform to create web based applications like news portals, inventory systems, issues tracking systems

Slide 14: Who is using TWiki?

Slide 15: Who is developing TWiki?

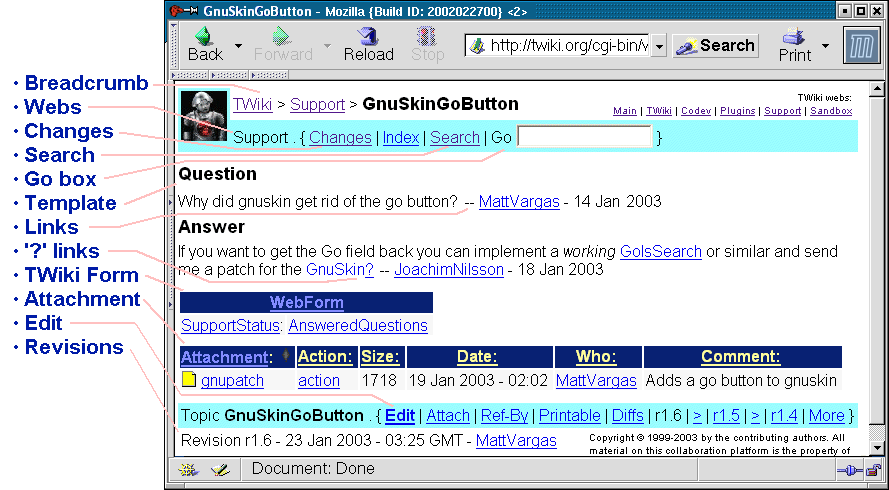

Slide 16: Highlights: Web Environment

Slide 17: Highlights: Interactive Environment

  • Add and refactor content - "Share Knowledge"
    • Vs. posting e-mails
  • Notification of changes:
    • Get notified of page changes by e-mail or RSS feed
    • A way to keep everybody in synch
    • Also a way to check content by senior engineers
  • Peer review for up to date content:
    • Fix a posting that is inaccurate or insufficient

Slide 18: Highlights: WikiWords for Linking

  • Easy to create hyperlinks within TWiki pages, just use a WikiWord
  • WikiWords are capitalized words, run together, e.g. WebCollaboration, IntranetTools
  • To create a link, edit the page and type:
    • For more info, see IntranetTools
  • If the 'IntranetTools' page exists, it is turned automatically into a link:

Slide 19: Highlights: Creating New Pages

  • First, edit the page where you want to spin off a new page, and type in some text including a WikiWord for the new page:
    • For more info, see IntranetServices
  • You will get:
    • For more info, see IntranetServices?.
  • The '?' is a link (to a page that doesn't exist, yet)
  • Now, to create the IntranetServices page, click on this link, type in some text and preview / save it
  • If you return to original page and hit Refresh, the link now covers the whole WikiWord:

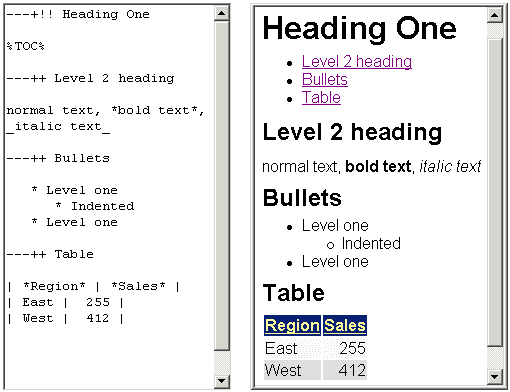

Slide 20: Highlights: WikiSyntax for Content

  • WikiSyntax
    • Content is more important than nice formatting
      • "Think e-mail"
    • Formatting is simple
    • Easy to learn
  • What about HTML?
    • TWiki renders HTML
    • Better practice to use TWiki syntax, easier to maintain by other users

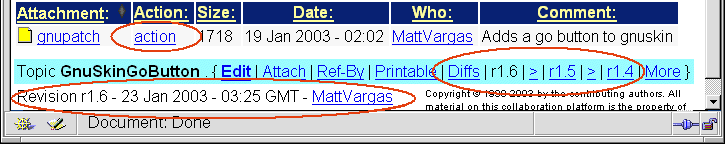

Slide 21: Highlights: Version Control

  • Pages are under revision control:
    • See previous page revisions
      • Click on the r1.4 type links at bottom of page
    • See differences between revisions
      • Click on the Diffs link at bottom of page
    • See who changed what and when.
  • 'Soft Security' - anyone can change anything, but changes are logged
  • Complete audit trail, even for meta data like access control

Slide 22: Highlights: Access Control

Slide 23: Limitations of TWiki

  • Is a purely web based environment. This has the following implications:
  • The editor is simply an HTML form; browser editors are primitive
    • Some browsers allow you to launch your preferred editor, like w3m on Unix
  • Non WYSIWYG editing; nevertheless rich text can be created using a very simple markup language (WikiSyntax)
    • Type: Make text *bold* and =fixed=
    • Get:  Make text bold and fixed

Slide 24: Resources for Learning TWiki

  • It takes 20 minutes to learn TWiki essentials and start sharing knowledge!

Slide 25: Advanced Features

  • TWiki skins
  • TWiki variables
  • TWiki forms
  • Formatted search
  • Plugins
  • Plugin API

Slide 26: Advanced: TWiki Skins

  • TWikiSkins change the look of a TWiki topic, for example the layout of the header and footer
  • Rendered text between header and footer does not change
  • You can also use skins to define an alternate view, like a view optimized for printing
  • Separation of program logic, look and content
  • Corporations typically create their own skin to match the corporate branding standard
  • Many SkinPackages available for download at TWiki.org

Slide 27: Advanced: TWiki Variables

  • TWiki Variables are what environment variables are to an OS, or macros are to a programming language
  • TWiki Variables are text strings - like %SCRIPTURL%, %URLPARAM{"city"}%, %INCLUDE{"OtherPage"}% - that get rendered at page view time
  • Types of variables: Predefined variables; preferences variables; user defined variables
  • Useful to create web applications

Slide 28: Advanced: TWiki Forms

  • Use TWikiForms to add form-based input to free-form content, e.g. you can structure topics with unlimited, easily searchable categories
  • A form is defined in a topic - (DB table definition)
  • Forms can be attached to topics - (DB table row)
  • The form appears in edit mode, and the contents are rendered as a table when viewing the actual page

Slide 29: Advanced: Formatted Search

  • Use FormattedSearch to generate customized reports in list format or table format
  • Typically used to list topics with form data
  • Report is embedded in a page with a %SEARCH{...}% variable
  • Example applications:
  • Example report:
    Example Plugins report

Slide 30: Advanced: TWiki Plugins

  • TWikiPlugins enhance the functionality of TWiki
  • Growing Plugins repository at TWiki.org - over 100 Plugins available for download
  • A great resource for administrators and web developers to tailor TWiki to their needs, like for example with:

Slide 31: Advanced: TWiki Plugins - Spreadsheet

  • SpreadSheetPlugin: Add spreadsheet formulae to TWiki tables
  • Over 40 formulae available like $AVERAGE(), $IF(), $REPLACE(), $TIME(), $SET(), $GET()
  • You type:
    | *Region:* | *Sales:* |
    | East    |  320 |
    | Central |  580 |
    | West    |  240 |
    | Total: |  %CALC{"$SUM($ABOVE())"}% |
  • You get:
    Region: Sales:
    East 320
    Central 580
    West 240
    Total: 1140

Slide 32: Advanced: Plugin API and Plugin Internals

  • A TWikiPlugin is composed of a Perl module that gets installed on the server and a topic with help and Plugin configuration
  • A Plugin implements callbacks that extend the functionality of TWiki
  • An API for TWikiPlugins provides the specifications for hooking into the core TWiki code from your external Perl Plugin module

Slide 33: Web Applications

  • The basic feature set of TWiki can be used to implement web applications
  • We look at two examples:
    • TWiki Installation Directory
    • Workflow system to track features and bugs of TWiki
  • Use/create Plugins for more advanced applications

Slide 34: Web App: TWiki Installation Directory

Slide 35: Web Application: Feature Tracking

Slide 36: Initial Deployment

  • Install TWiki on web server
  • Plan rollout and content
    • Pain killer vs vitamins
  • Build initial structure
  • Populate initial content with help from early adopters
  • Initial rollout with smaller group
  • Train and coach users
  • Do not underestimate inertia and time

Slide 37: Collaboration Issues

  • E-mail Habit - "I prefer e-mail"
    • DONE E-mail doesn't scale - new people, new technology, new customers, new partners...
  • Shared knowledge vs. 'Owners' - "I don't want to edit someone else's page"
    • DONE Wiki culture: nobody 'owns' pages, and any change can be built upon
    • DONE First person to create page is not the owner!
  • 'No control' syndrome - "This leads to chaos"
    • Can be perceived as disruptive by upper management
    • DONE Soft security, audit trail, peer review
  • TWiki syntax - "yet another language"
    • DONE TWiki is e-mail, e.g., just *do it*
    • DONE Use the help pages, doesn't take long to learn

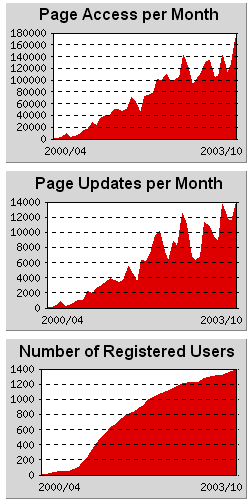

Slide 38: Case Study Wind River: Initial deployment

  • Wind River provides market-specific embedded platforms that integrate real-time operating systems, development tools and technologies
  • Wind River started a large software project in spring 2000, involving around 100 engineers located in 7 offices on two continents
  • Evaluated two web based products to keep track of teams, schedules, milestones, meeting minutes, code reviews, and to store all project related documents:
    • eRoom: Was in use by merged company ISI
    • TWiki: Was in use by acquired company TakeFive
  • Decided for TWiki because it was more flexible and configurable than eRoom, even though eRoom had a more polished UI and more out-of-box applications

Slide 39: Case Study Wind River: Build and Coach

  • Initial time was spent to compile the requirements with key stakeholders, and to build the content structure
  • Gave virtual trainings for each office on collaboration, with focus more on "pros and cons of e-mail, webmaster maintained Intranets, and TWiki based collaboration", and "why it pays off using online collaboration"
  • Coached employees by monitoring content and sending "collaboration hints"

Slide 40: Case Study Wind River: Growing Up

TWiki stats at Wind River
  • Other groups within the company started using TWiki after seeing how projects can be managed in TWiki
  • Big push after a cross-functional council started using TWiki to document its initiatives, metrics and processes
  • Several skins have been created in the familiar Wind River Intranet look
  • The Intranet home is now a TWiki driven news portal
  • Large deployment:
    • 1400 registered users
    • 100 webs, 35K pages
    • 180K actions / month
    • 14K updates / month

Slide 41: Summary

  • TWiki is a powerful platform for web collaboration
  • Free form content and content with structure where needed
  • Easy to share knowledge online
  • Careful coaching is needed
  • Viral growth after people "get it"
  • TWiki is a platform to build web-based applications efficiently

Slide 42: Questions & Answers




Slide 43: References

Slide 44: About Peter

  • Peter Thoeny - Peter@ThoenyPLEASENOSPAM.com
  • Software developer with over 15 years experience, with interests in corporate collaboration, web technology and UI design
  • Author of the open source collaboration software TWiki, managed the project over the last four years
  • Graduate of the Swiss Federal Institute of Technology in Zurich
  • Lived in Japan for 8 years working as an engineering manager for Denso, the largest auto electric parts supplier in Japan
  • Now in the Silicon Valley for 6 years, managing the Engineering Operations group at Wind River

Notes

-- PeterThoeny - 06 Jan 2004

Topic revision: r5 - 01 Jun 2005 - 06:23:47 - PeterThoeny

This site is powered by the TWiki collaboration platformCopyright © by the contributing authors. All material on this collaboration platform is the property of the contributing authors.
Ideas, requests, problems regarding TWiki? Send feedback
